Contact tool setter Maintaining machining accuracy of CNC machine
tools Normally Open
Tool setter description
In the processing of the workpiece, the workpiece loading , tool
adjustment and other auxiliary time, accounting for a large
proportion of the processing cycle, which tool adjustment is
time-consuming and laborious, and not easy to accurate, and finally
need to test cutting.Statistics show that the processing of a
workpiece, pure maneuvering time only accounts for about 55% of the
total time, clamping and the auxiliary time of the knife accounted
for 45%.Therefore, the dao instrument shows great superiority.
Tool setter function
1, The offset value of cutter was measured and compensated in the
five directions of ±X, ±Z and Y axis.
2, Automatic monitoring, alarm and compensation for tool wear or
damage during machining,
3, Compensation for the variation of tool bias caused by thermal
deformation of machine tool.
The advantages of Silvercnc Tool setter
1. The internal chips and contacts of the cutter are completely
imported from Japan
2. Waterproof: IP68 submarine-class waterproof
3. The tool surface is made of superhard material and ground with
mirror surface
4. The cable is oil resistant and corrosion resistant
5. The base is made of stainless steel, which can be fixed for a
long time without deformation
PRODUCT PARAMETERS
| Product name | MK-T24E-20 |
| Contact diameter | Ø20mm |
| Surface finishing | Grinding 4s |
| Contact material | Tungsten carbide |
| Contact structure | NC (Normally open) |
| Pretravel | 0.5mm |
| Stroke | 12mm |
| Repeatability | 0.002(Recommended operating speed of 50 - 200mm/min) |
| Contact life time | 3 million |
| Protective structure | IP67 |
| Contact force | 2.5N (Installation position: Vertical) |
| Cable | Oil resistant, standard 5 m (length can be customized)φ4.8 / 6
cores |
| LED lamp | Default : LED OFF / Operating : LED ON |
| Over travel signal (built-in microswitch) |
| Output mode | NC normally closed (an emergency stop when the signal broken ) |
| Contact rating | DC24V 20 mA resistive load |
instructions
1.Do not exceed the stroke of the tool cutter, otherwise the tool
cutter and the cutter will be damaged.
2.When touching the contact surface of the tool setting instrument,
please do not release it immediately, so as not to damage the
internal structure of the tool setting instrument.
3.When the tool cutter and the cutter contact is over, the cutter
should be lifted vertically away from the contact surface. It is
not allowed to move laterally, which will damage the tool cutter.
Product dimessions

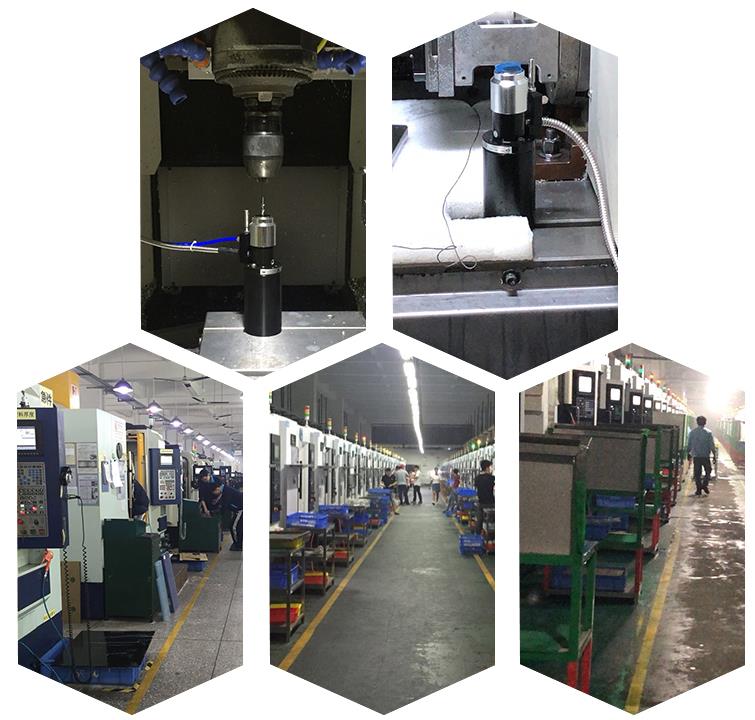

Product detail and application
