Tool setter for cnc machine tool to detect wear and breakage and
correct thermal distortion
Tool setter description
The tool setting instrument are a high-precision switch (probe), a
hard alloy tetrahedron (probe) with high hardness and wear
resistance (probe), and a signal transmission connector (other
parts omitted).The tetrahedral probe is used to contact the tool
and transmit the force to the high-precision switch through the
flexible support rod installed under it.The on and off signals sent
by the switch are transmitted to the CNC system for tool direction
identification, calculation, compensation, access and so on through
the signal transmission connector.
Tool setter Features
1. Maintaining high machining accuracy of CNC machining centers.
Corrected tool wear caused by cutting and thermal displacement of
the tool length due to differences between daytime and nighttime
temperatures by a precision of 1μm.Machining accuracy will be
always maintained within tolerance
2. Improve productivity by enhancing net working rate of machine
tools.
Detect accidental tool breakage in machining process, and stop the
machine.Increase productivity and net working rate by avoiding
machining problems in nightlong unmanned operation
3. Prevent defective products.
When the blade is pressed against the contact, high-accuracy signal
is output to the CNC or PC.
It is no longer necessary to repeat the process of trial grinding,
measurement calculation, and input to the CNC, thereby eliminating
the need for expertise in tool setting while also eliminating any
concern over damaging the machine due to setting errors
PRODUCT PARAMETERS
| Product name | M26D-20 |
| Contact diameter | Ø20mm |
| Surface finishing | Grinding 4s |
| Contact material | Tungsten carbide |
| Contact structure | NC (Normally closed/open) |
| Pretravel | 0 |
| Stroke | 5mm |
| Repeatability | 0.002(Recommended operating speed of 50 - 200mm/min) |
| Contact life time | 3 million |
| Protective structure | IP67 |
| Contact force | 1.5N (Installation position: Vertical) |
| Cable | Oil resistant, standard 5 m (length can be customized)φ4.8 / 6
cores |
| LED lamp | Default : LED OFF / Operating : LED ON |
| Over travel signal (built-in microswitch) |
| Output mode | NC normally closed (an emergency stop when the signal broken ) |
| Contact rating | DC24V 20 mA resistive load |
instructions
1. Do not exceed the stroke of the tool cutter, otherwise the tool
cutter and the cutter will be damaged.
2. When touching the contact surface of the tool setting
instrument, please do not release it immediately, so as not to
damage the internal structure of the tool setting instrument.
3. When the tool cutter and the cutter contact is over, the cutter
should be lifted vertically away from the contact surface. It is
not allowed to move laterally, which will damage the tool cutter.

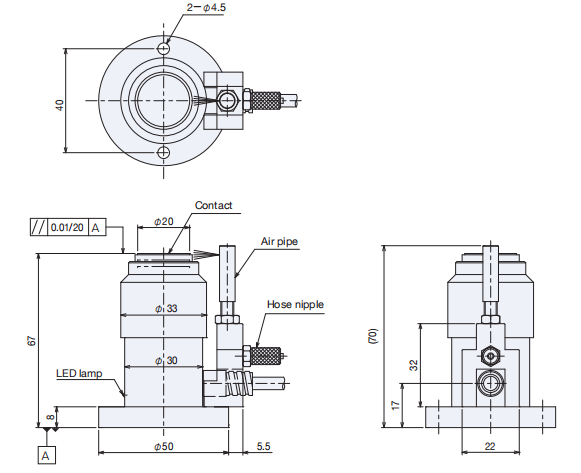

Product dimessions

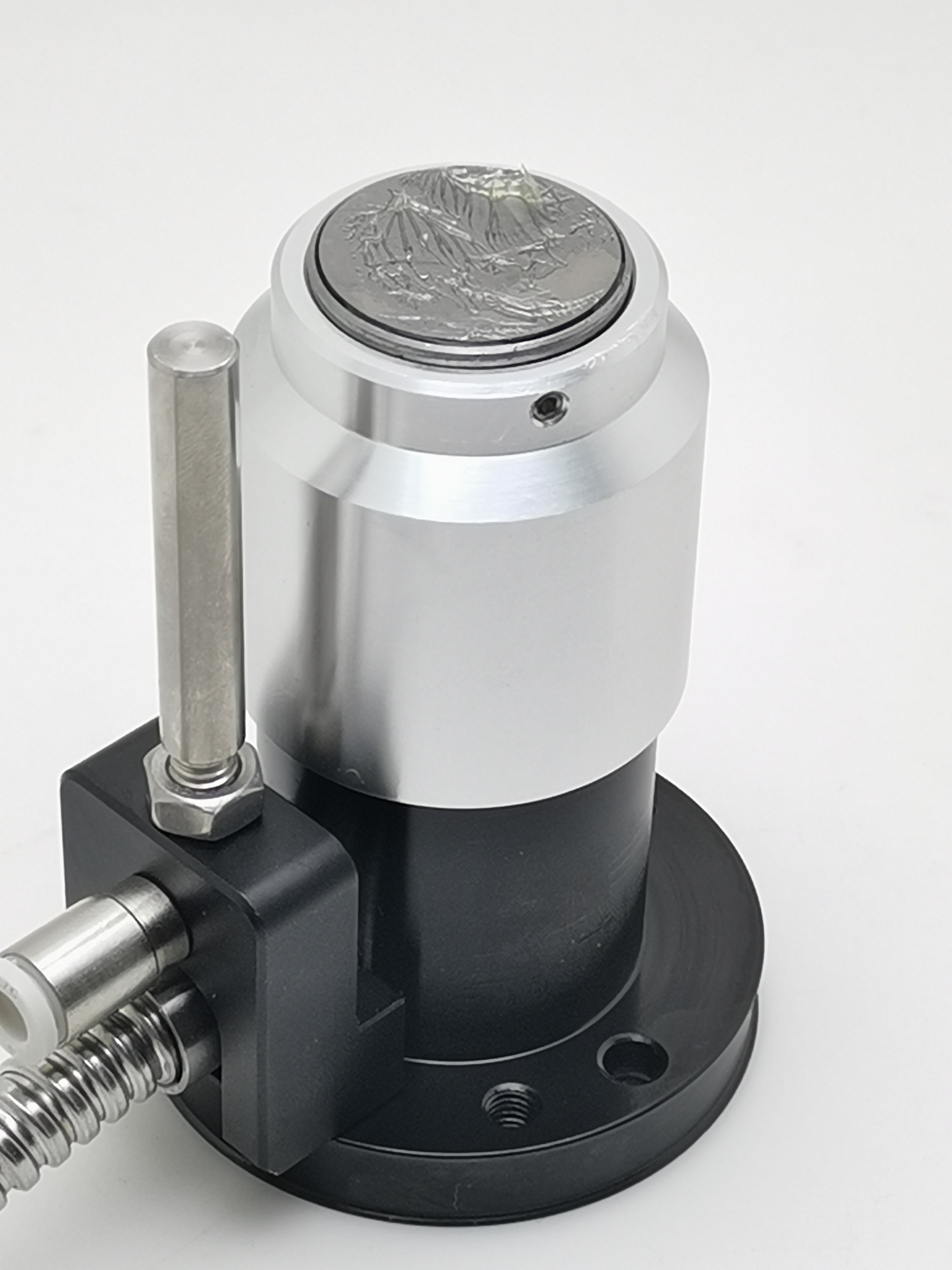

Product detail
