CNC tool setter for tool length measurement with repeatability 1 μm P21

Tool setter description
1. It is used to measure the toool length,wear and break of CNC machine tools.
2. Alarm will be given in case of over travel to prevent accidents.
3. Shorten the measuring time of tools and improve the running time of machine tools.
4. Save manpower and prevent unqualified products.

Tool setter Features
1. As the signal is output by directly contacting the leading edge of the tool, it does not cause false positives and has high
reliability.

2. The internal switch is of the contact type with high precision (repeatability: 1 μm), and is free of movement differential.

3. Since there is no need of an amplifier, there is no temperature drift caused by self-generation and temperature
characteristic of the sensor unit.

4. Dustproof and waterproof structure has superior durability even under harsh conditions caused by the presence of coolant
and cuttings.

5. Outputs over-travel warning signal.

PRODUCT PARAMETERS

instructions
1.Do not exceed the stroke of the tool cutter, otherwise the tool cutter and the cutter will be damaged.
2.When touching the contact surface of the tool setting instrument, please do not release it immediately, so as not to damage the internal structure of the tool setting instrument.
3.When the tool cutter and the cutter contact is over, the cutter should be lifted vertically away from the contact surface. It is not allowed to move laterally, which will damage the tool cutter.

Product dimessions

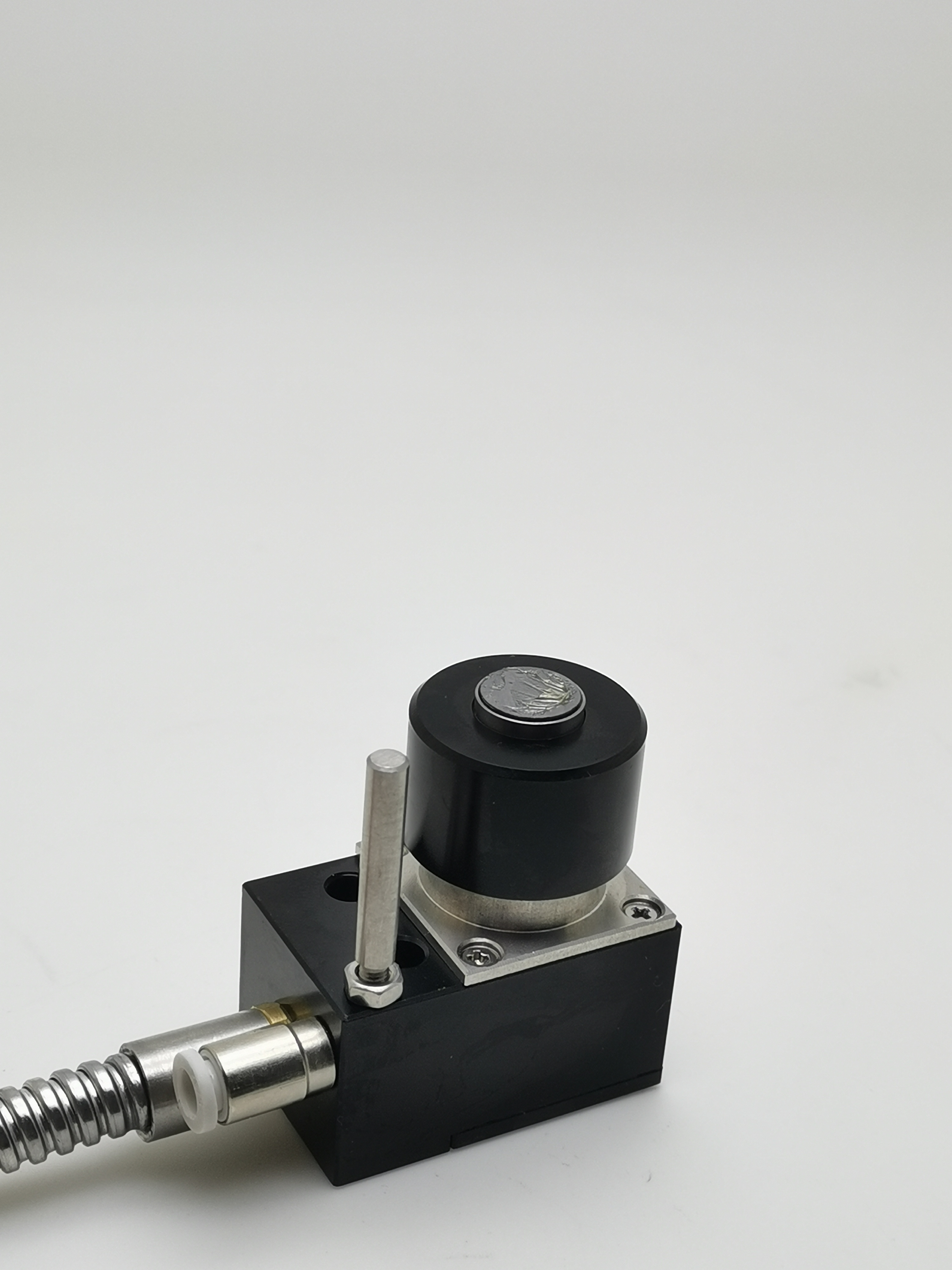

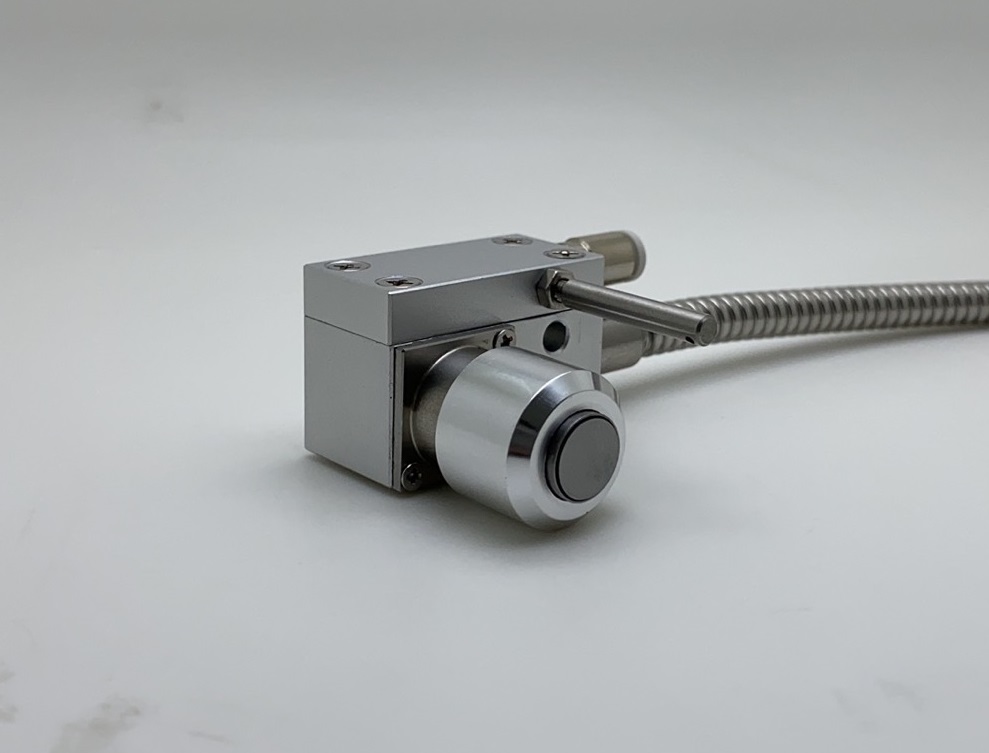

Product detail
