CNC Machine Tool 5th Axis Rotary Table with Roller Cam driver no
blacklash 350mm
Product features

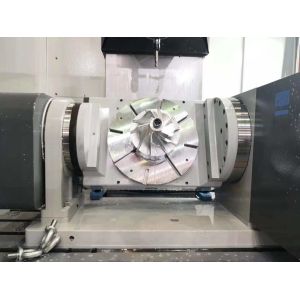

Silver-RT350 is one of best selling five-axis rotary tables, the
RT350 is one of our larger Standard Tilting Rotary Tables.
Offering unrivalled high precision and durability for medium to
large-sized machining centres, the RT50 features a powerful
hydraulic clamping system, ensuring productivity that is second to
none in its category. Designed specifically for use on horizontal
machines and having an optional built-in type 6 ports rotary joint
attachment, theRT350 promises performance and accuracy.
The rotary table enable user can do his work very fast and easily.
The machine tool has an indispensable role in modern industry jobs
and has recently benefited from the popularity of 5-axis machining
centers that greatly enhance flexibility in product design and
finishing, by enabling precise and detailed machining of complex
mass-produced parts.
and it enable the user to use the machine effectively o]n five
sides of a work piece (top, front, rear, left and right) in one
clamping, which significantly reduces total cycle and setup times.
Application Area:
This five-axis rotary table is mainly used for machine tools with
850 strokes. The processing method that requires multiple clamping
and multiple processes is successfully reduced to complete most or
all of the processing procedures in one clamping, so as to improve
the processing accuracy, shorten the processing cycle and save
human and material costs, Mainly used in the following industries
and products:
1. Precision parts
2. Medical equipment
3. Space blades
4. Aerospace defense industry
Product Parameters:
| Description | unit | Silver-RT350 |
| Table Diameter | mm | 350 |
| Center Height (Vertical) | mm | 330 |
| Diameter of Table Central Hole | mm | 80H7 |
| T-Slot | mm | 12H7 |
| Allowable Workpiece Load | Vertical | kg | 150 |
Horizontal | kg | 200 |
| Net Weight (servo motor excluded) | kg | 460 |
| Axis | / | Rotary axis | Tilt axis |
| Cooling System | / | Free Colling |
| Transmission Mechanism | / | Roller Gear Cam |
| Angle range | / | 360° | ﹢30°~-120° |
| Min. Increment | deg. | 0.001 | 0.001 |
| Speed Reduction Ratio | / | 1/75 | 1/84 |
| Rated / Max. Speed | rpm. | 40 | 35 |
| Indexing Precision | sec. | ±20 | ±40 |
| Repeatability | sec. | ±4 | ±4 |
| Clamping System(Hydraulic) | Mpa | 5 | 5 |
| Clamping Torque | N.m | 2156 | 2450 |
| Servo Motor Model | FANUC | Taper / Straight | α8is /β12is | α12iF /β22is |
| MITSUBISHI | Straight | HF154S | HF204S |
| SIEMENS | Straight | 1FK7063 | 1FK7083 |
| YASKAWA | Straight | SGMGV-20A | SGMGV-30A |
