Best Selling CNC 5 Axis Rotarytable Support Fanuc / Mitsubishi
System T200
Product Description
The Silvercnc T200 CNC 5 Axis Rotary table is Roller CAM Driver
which uses the roller gear mechanism,oneof the finest motion
control mechanisms available. The unit is constructed from an input
shaft(the roller gearcam) and a turret(output shaft)fited with
roller folowers. The roller followers are preloaded against a
screw-like input shaft to completely eliminate backlash. Our
proprietary adjustment mechanism provides optimum preload. The
roller folowers planted in the turrt use internal roler bearings to
transfer torque whle rotating. This ensures zero backlash,
outstanding precision, and excellent efficiency without causing
wear, while providing long-term consistent accuracy.
Silvercnc T200 CNC 5 Axis Rotary table have excellent cost
performance, the same quality price is two-thirds of the Japanese
brands. which are widely used in high speed vertical machining
centers and drilling and tapping machines in China. it can be used
in Fanuc, Mitsubishi, Siemens NUMERICAL control systems.AC axis
linkage can also realize the five-axis surface machining.Widely
used in aerospace satellite, military, medical equipment and other
precision parts processing.
Product features and advantages:
1. Roller CAM structure, high precision, no backlash and no wear
2. The bearing capacity is 35 kg, the rigidity of the same product
is the best
3. Compared with worm gear structure, it has higher precision,
easier maintenance and lower maintenance cost.
Product Parameter
| Description | unit | Silver-T200 |
| Table Diameter | mm | 200 |
| Center Height (Vertical) | mm | 292.5 |
| Diameter of Table Central Hole | mm | 60H7 |
| T-Slot | mm | 12H7 |
| Allowable Workpiece Load | Vertical | kg | 35 |
Horizontal | kg | 50 |
| Net Weight (servo motor excluded) | kg | 220 |
| Axis | / | Rotary axis | Tilt axis |
| Cooling System | / | Free Colling |
| Transmission Mechanism | / | Roller Gear Cam |
| Angle range | / | 360° | ﹢20°~-120° |
| Min. Increment | deg. | 0.001 | 0.001 |
| Speed Reduction Ratio | / | 1/48 | 1/60 |
| Rated / Max. Speed | rpm. | 60 | 50 |
| Indexing Precision | sec. | ±25 | ±40 |
| Repeatability | sec. | ±4 | ±4 |
| Clamping System(Hydraulic) | Mpa | 5 | 5 |
| Clamping Torque | N.m | 147 | 490 |
| Servo Motor Model | FANUC | Taper / Straight | αis4 /βis4 | αiF8 /βis8 |
| MITSUBISHI | Straight | KP73 | HF104S |
| BROTHER | Straight | R2AA08075 | R2AA08100 |
| YASKAWA | Straight | SGMGV-08A | SGMGV-09A |

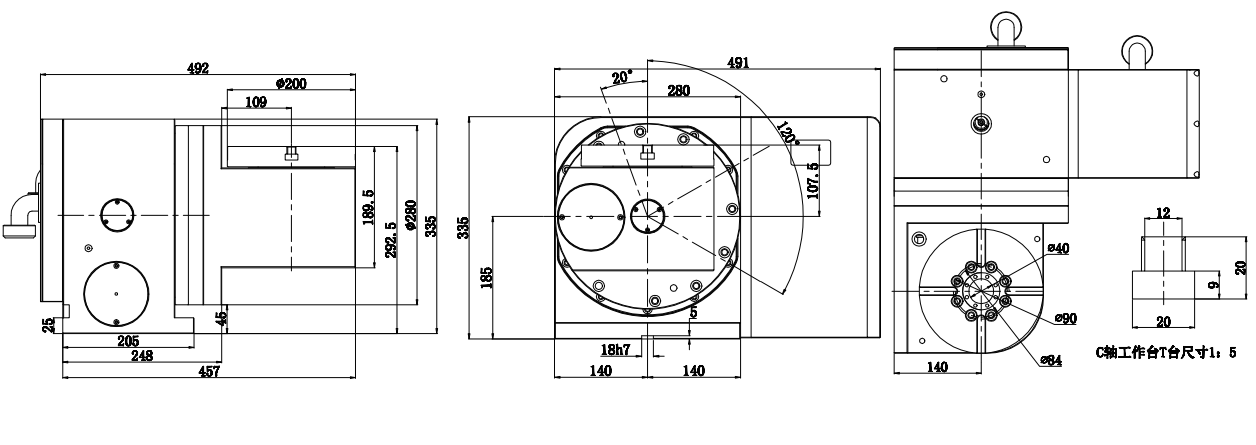

Dimensions of silver-T200
Product details
