The CNC Rotary Table model with a Direct Drive (DD) motor 110
Product description
There is no mechanical reduclion mechanism such as worm system in a
rolary table with DD molor.DD(Drect Drive) motor is bult in the
rotary tabe to dive dirediy. High rotation speed and high
accelerationl deceleration can be done. However,the drving torque
of the rotary table is not strong due to no mechanical reduclion
mechanism ,Theretore, the suabe appication of the rotary table with
DD motor must be selected.
Silver DD rotary table features
1. Driven by torque motoe,working in high speed and rapidresponse
cases,can save a lot of time.
2. Assembling with the world famous brands' bearings, it is of good
rigidity, large load capacity and small runout. Working with
standard encoder(26 bit) which can locate quickly.
3. With our own patented brake system, we can ensure the good
quality of products.
4. Adopting with the IP65 protection, it can prevent water from the
rotary.
5. The special rotary can be made according to clients'
requirements for different working environment and precision.
Product technical parameter
Rotary Table Model | DZGD-125 |
| Disk surface diameter(mm) | Φ125 |
| Center for high(mm) | 110 |
| Center through hole diameter | Φ22H7 |
| Clamping Way | Air |
| Clamping Torque(Nm) | 100 |
Disk Surface/ Radial Runou(mm) | 0.01/0.005 |
| Driving Type | Torque motor direct drive |
| Voltage for Driver(V) | 220 |
| Rated /Maximum Speed | 200/400 |
| Rated /MaximumTorque(S1/S6)(Nm) | 20/80 |
Rated/Maximum Current(S1/S6)(A) | 2.7/10 |
| Positioning Precision(arc-sec) | ±10 |
Repeated Positioning Precision(arc-sec) | ±2 |
| Minimum unit(degree) | 0.001 |
| Load Capacity(Kg) | 30 |
| Weight(Kg) | 35 |
| Level of Protection | IP66 |

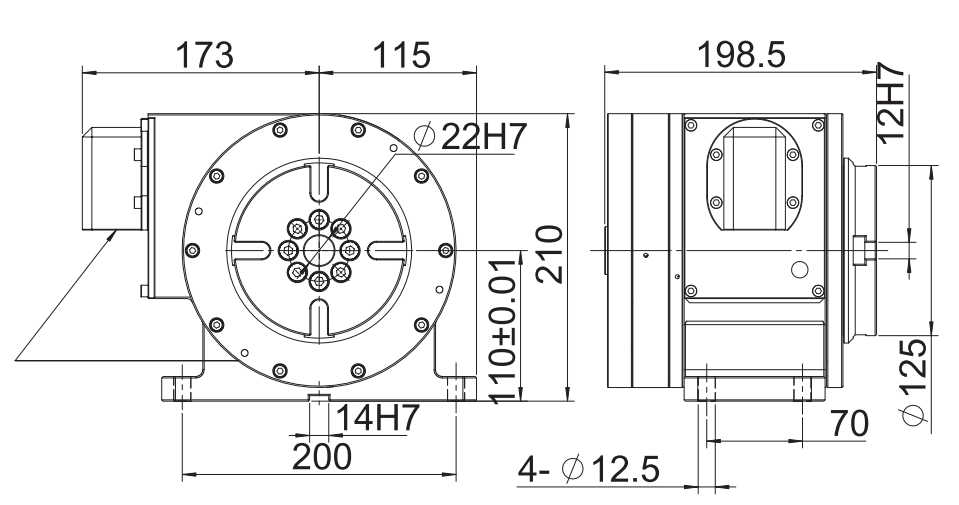

Product dimession
FAQ:
Q1. Can you provide training for Installation and commissioning?
A. Yes, free training in our factory is available.
Q2. How about your price?
A. Send me details about what you need, pease do tell me the model
of the machine control system, you will get the best price. The
price is
competitive over the world.
Q3. What's your warranty terms?
A. We will supply a replacement for parts that prove to be
defective for a period of 12 months,
starting on the machine’s bill of lading date. Extended warranty is
available at the time of
purchase. Please contact your sales representative for details
