Roller Cam Driver Horizontal NC Rotary Table For Horizaontal
Machining Center
Rollar CAM Driver 4 axis Rotary Table
Silver indexing disc adopts the roller CAM mechanism design, the
roller CAM refers to the convex transmission shaft and roller
turret two major components.
Roller and CAM in rolling contact, roller and CAM mesh by
precompression processing, so can completely eliminate the roller
and CAM back gap, more prominent roller CAM ultra-precision and
high net rigidity and other characteristics.No back gap roller CAM
indexing disc:
Roller and CAM in rolling contact, with high rigidity, high speed
and durability, and other three characteristics.
The engagement of roller and CAM is prepressed, so the back gap
between roller and CAM can be completely eliminated, and the
ultra-precision characteristics of roller CAM can be highlighted.
In addition, the transmission of kinetic energy by rolling can
effectively reduce the energy consumption in the driving process,
so the transmission efficiency of roller CAM can be as high as 90%
Product features
1. High strength FC30 cast iron is used for manufacturing
Suitable for milling machine, machining center or other special
machine for cutting
3. The new spindle locking system, compared with the traditional
bilateral platen, has stronger locking and more stable cutting
4. Can do 360 pass turn, turn the handle one turn for 4 degrees,
the minimum positioning unit is 0001 degrees
PRODUCT PARAMETERS
| Description | unit | SILVER-H500 | SILVER-H630 | SILVER-H800 |
| Table Diameter | mm | 500 | 630 | 800 |
| Allowable Workpiece Load | kg | 600 | 1200 | 2500 |
| Min. Increment | deg | 0.001° | 0.001° | 0.001° |
| T-Slot | mm | 18H7 | 18H7 | 22H7 |
| Indexing Precision | arc.sec. | ±15 | ±15 | ±15 |
| Repeatability | arc.sec. | ±4 | ±4 | ±4 |
| Speed Reduction Ratio | / | 1/180 | 1/180 | 1/180 |
| Rated / Max. Speed | rpm | 11.1 | 11.1 | 11.1 |
| Diameter of Table Central Hole | mm | Ø50H7 | Ø50H7 | Ø50H7 |
| Net Weight (servo motor excluded) | kg | 530 | 600 | 1210 |
| Strength of Roller Gear Cam | N.m | 2450 | 3700 | 6400 |
| Clamping System(Hydraulic) | Mpa | 5 | 5 | 5 |
| Clamping Torque | N.m | 2860 | 3900 | 8000 |
Product dimession
H500
H630
H800

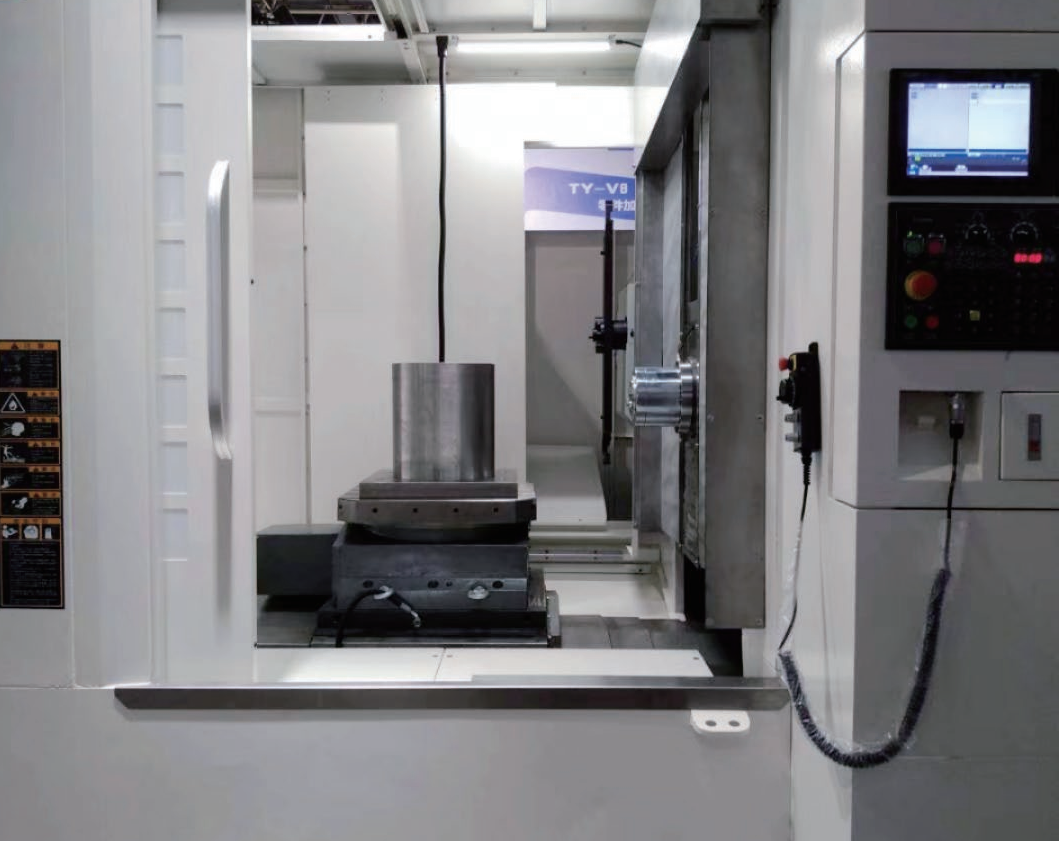

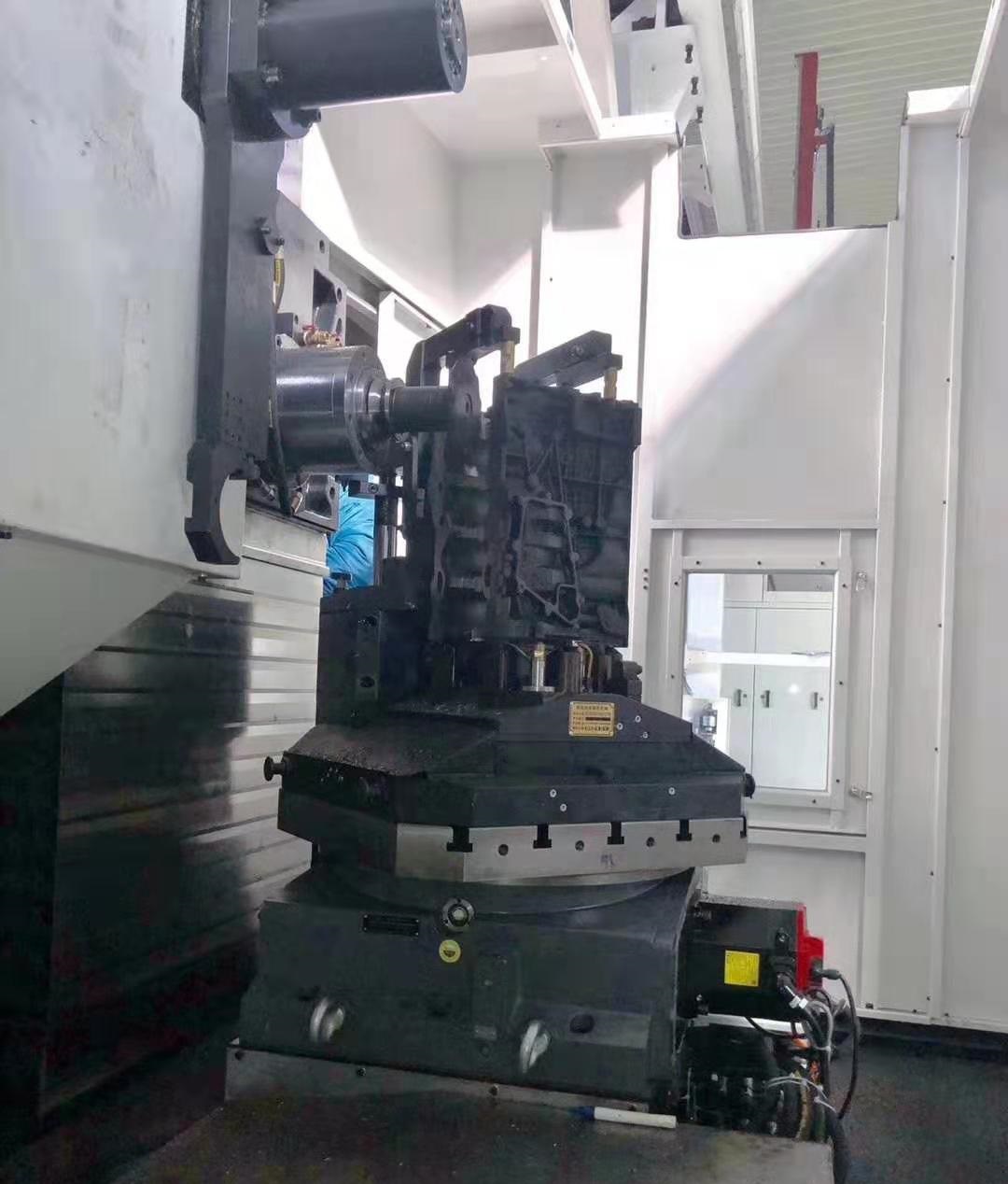

Product application
FAQ:
Q1. Can you provide training for Installation and commissioning?
A. Yes, free training in our factory is available.
Q2. How about your price?
A. Send me details about what you need, pease do tell me the model
of the machine control system, you will get the best price. The
price is
competitive over the world.
Q3. What's your warranty terms?
A. We will supply a replacement for parts that prove to be
defective for a period of 12 months,
starting on the machine’s bill of lading date. Extended warranty is
available at the time of
purchase. Please contact your sales representative for details
