The most widely used Fourth Axis Rotary Table C170 Repeatability is
4 sec
Product description
The Silver-C170 4 axis rotary table is the most widely used model
in the market ,how it works?
A 4th axis rotary table serves to add a rotating axis to the
desired piece being shaped. Similar to a lathe’s rotating
head-stock, the rotary table holds the piece and moves it at exact
intervals of revolutions.
Because it can move in precise degrees of motion, machinists can
easily calculate correct positions, just as they do with the other
three axes of motion on the machine. Once all 4 axes are used,
making grooves or holes in the piece is much easier than without
the rotary table. This saves time by discarding the task of
removing and resetting the piece in another position. Having the
ability to move the piece in determined intervals and precision in
multiple axes is important for more complex machine work.
Product features
The silver-C170 4th axis rotary table to be added a milling machine
provides several advantages to your job shop. Having another axis
to work with gives milling machine users more precision and
accuracy without having to change part positions.
Also, an additional axis would prove to make any milling machine
more diverse in the work it is capable of doing. Lathe machines
introduce the aspect of a rotating part, so a rotary table would
add the same benefits provided. A 4th axis rotary table, in
general, can provide more precision and ease to a complex design,
reducing time and costs for the production of a certain piece
Product Parameters
| Description | unit | SILVER-C170 |
| Table Diameter | mm | Ø170 |
| Diameter of Table Central Hole | mm | Ø65H7 |
| Center Height (Vertical) | mm | 150 |
| Speed Reduction Ratio | / | 60 |
| Max. Rotation Rate of Table (Calculate with Fanuc α Motor) | rpm | 50 |
| Indexing Precision | sec. | ±20 |
| Repeatability | sec. | ±4 |
| Net Weight (servo motor excluded) | kg | 65 |
| Allowable Workpiece Load | Vertical | kg | 70 |
Horizontal
| kg | 145 |
| Allowable Load | F | N | 10422 |
| Strength of Roller Gear Cam |  | N.m | 180 |
| Max strength of Roller Gear Cam | N.m | 235 |
| Allowable bending torque | N.m | 489 |
| Allowable Inertia Load Capacity | kg.m2 | 0.65 |
| Clamping Torque | N.m | 210 |
Clamping System
(Pneumatic / Hydraulic) | Mpa | 5 (Hydraulic) |

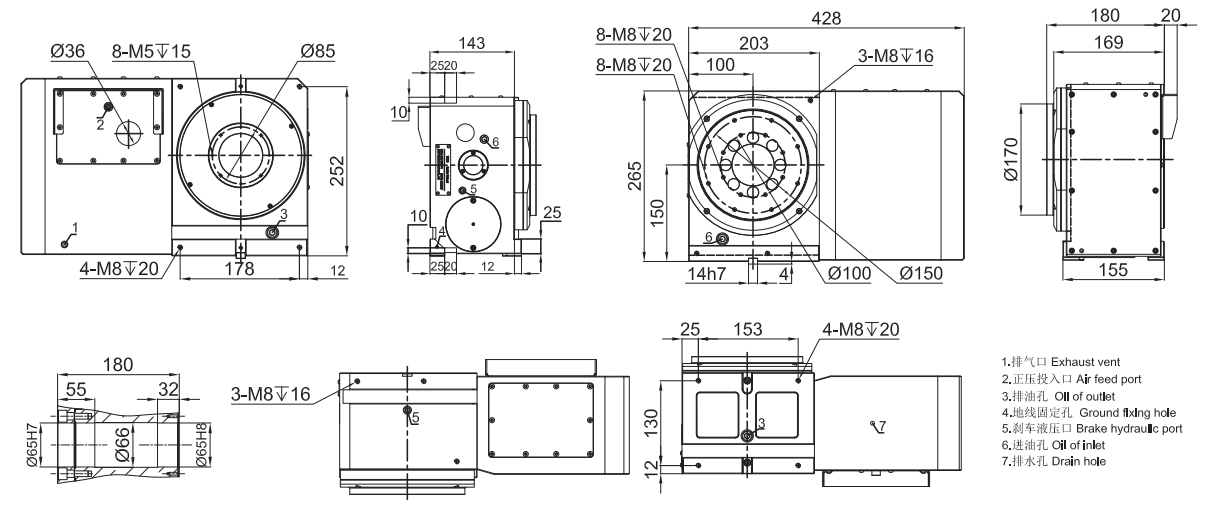

Demessions of silver-C170

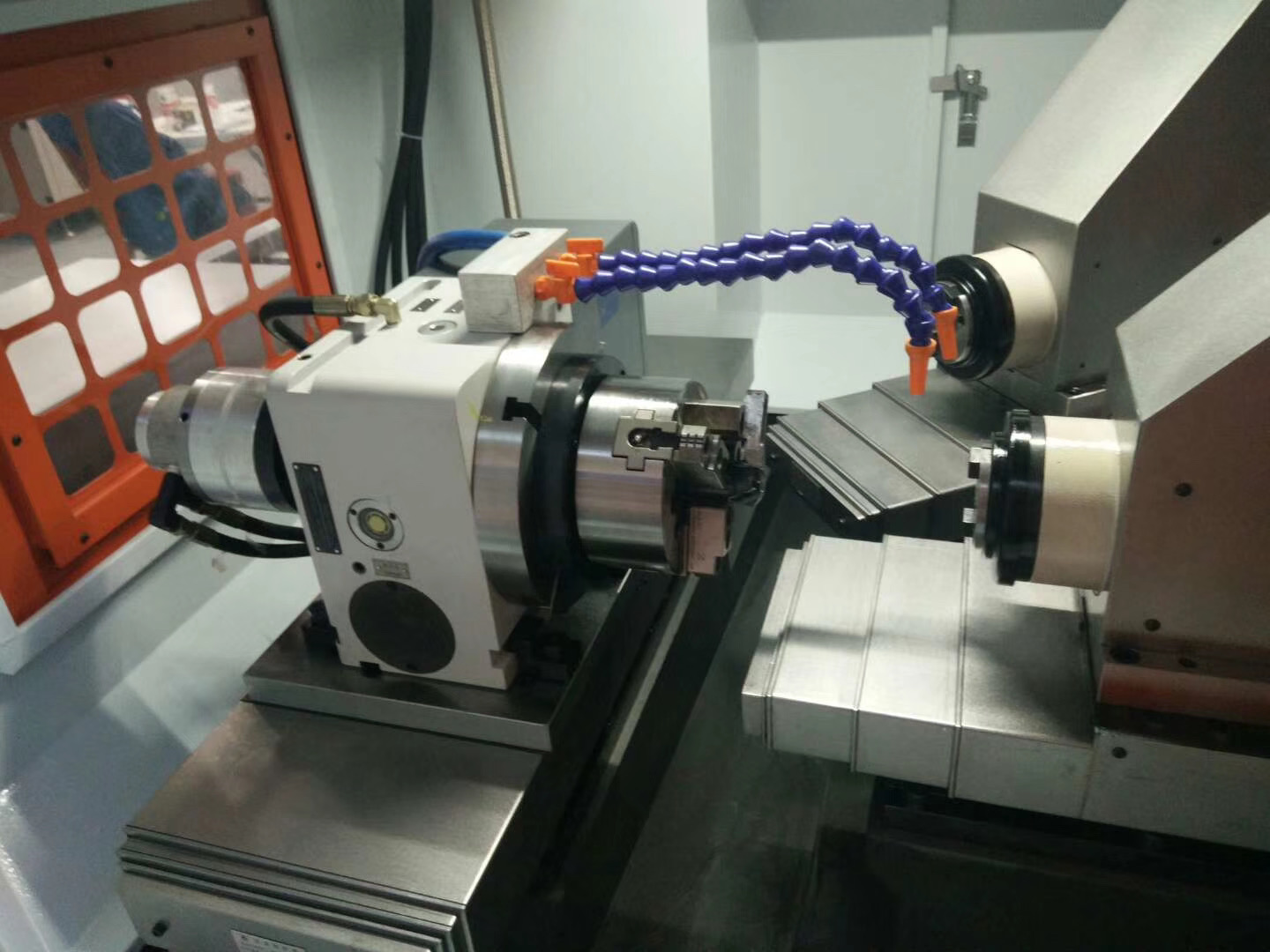

Product application case
Customized service
Products can be customized according to customer requirements, you
can change the shape and color of the sheet metal motor cover, you
can change the LOGO,as the following photo show:
