Harmonic driver 4 aixs rotary table cost effective and Stable performance

Product description

This kind of rotary table drivered by harmonic gear , The harmonic gear transmission system consists of three basic components, the Circular Spline, Flexspline and Wave Generator.The principle of harmonic gear transmission is to generate a moving deformation wave through the action of wave generator in the flexible gear component, and meshing with the rigid gear teeth, so as to achieve the purpose of transmission

PRODUCT CHARACTERISTICS

1. Simple structure, few parts, small volume, light weight.Compared with the ordinary reducer with similar transmission ratio, its parts are reduced by about 50%, and its volume and weight are reduced by more than 1/3.
2. Large transmission ratio and wide range of transmission ratio.The transmission ratio of single-stage harmonic reducer can be between 50 ~ 300, the transmission ratio of double-stage harmonic reducer can be between 3000 ~ 60,000, and the transmission ratio of complex wave harmonic reducer can be between 100 ~ 140000.
3. capacity, stable transmission, high precision and low noise.
4. The return error of harmonic gear transmission is small, and the tooth side clearance can be adjusted, or even zero side clearance transmission can be realized.
5. When using structural forms such as electromagnetic wave generator or disk wave generator, smaller moment of inertia can be obtained.

6. The harmonic gear drive can also transmit motion and power to the sealed space. The harmonic drive reduction device of the sealed flexible wheel can drive the mechanism working in high vacuum, corrosive and other harmful media space.

7. High transmission efficiency, and in the case of a large transmission ratio, still has a high efficiency

PRODUCT PARAMETERS

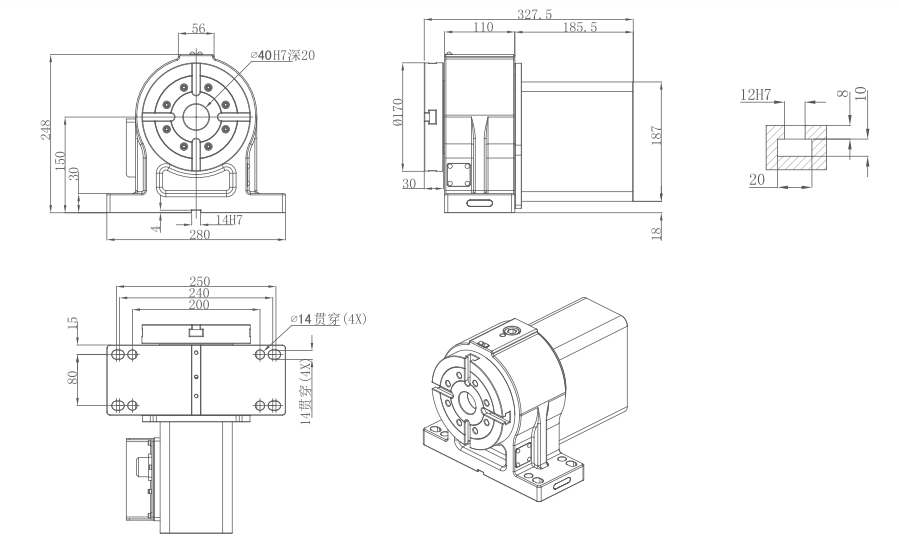

Product dimession

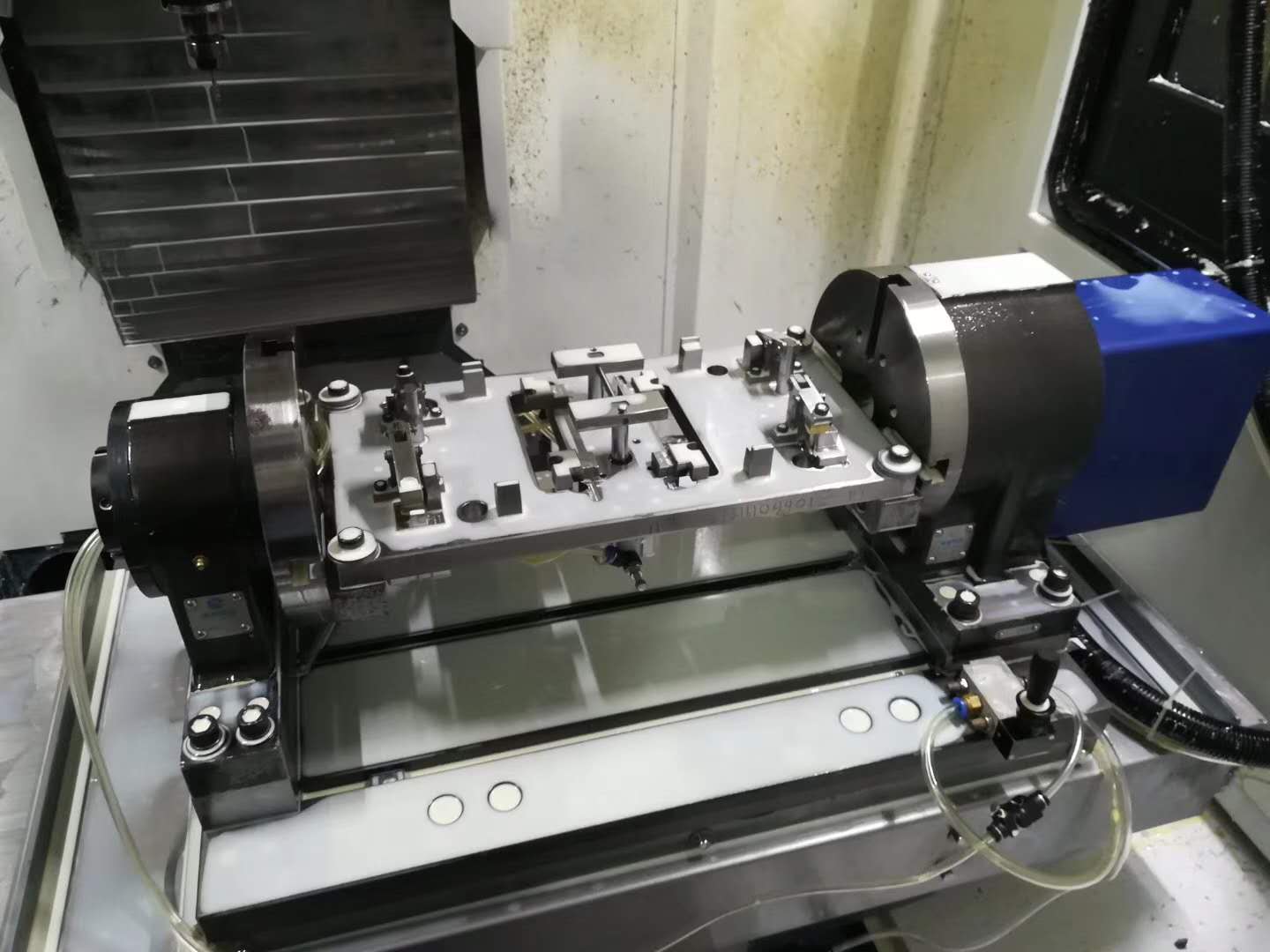

Product application

      Shenzhen Silvercnc Tech Co.,Ltd founded in 2013,which focus on CNC industry, providing the most suitable CNC machine and related accessories  at the best price for our customers. The international trade officially started in 2019,providing products and services ro the world. Our products include5 axis CNC machine ,3 axis CNC machine,rotary table, probe, stylus, tool setter, tool holder, rotary vise, tool maker vise, hand wheel and other machinery accessories.we want to help my clients create value.
