Preload and high rigidity 4 Axis Rotary Table with hydraulic
clamping force C250
Rollar CAM Driver 4 axis Rotary Table C250
The Roller Driver uses the roller gear mechanism, one of the finest
motion control mechanisms available. The unit is constructed from
an input shaft(the roller gearcam) and a turret(output shaft)
fitted with roller followers.The roller followers are preloaded
against a screw-like input shaft to completely eliminate backlash.
Our proprietary adjustment mechanism provides optimum preload. The
roller followers planted in the turret use internal roller bearings
to transfer torque while rotating. This ensures zero backlash,
outstanding precision,and excellent efficiency without causing
wear, while providing long-term consistent accuracy.
No backlash(play) during the clockwise/anti-clockwise rotation
No wear because power transfers through rolling contact
High accuracy and good efficiency
Preload and high rigidity
The Importance of a 4th Axis Rotary Table
Just like with the other three axes of motion, the 4th axis can be
adjusted for specific amounts of distances to accurately tell what
position you are at in relation to the dimensions of the piece.
Also, the scales used to measure its motion can save time and
resources by reducing the amount of mistakes that could result in
major delays. A 4th axis rotary table can be integrated into a
milling machine’s control in order to set the positions needed.
This makes accurately machining multiple pieces faster and easier
to accomplish.
PRODUCT PARAMETERS
| Description | unit | SILVER-C250L |
| Table Diameter | mm | Ø250 |
| Diameter of Table Central Hole | mm | Ø75H7 |
| Center Height (Vertical) | mm | 160 |
| Speed Reduction Ratio | / | 60 |
| Max. Rotation Rate of Table (Calculate with Fanuc α Motor) | rpm | 50 |
| Indexing Precision | sec. | ±20 |
| Repeatability | sec. | ±4 |
| Net Weight (servo motor excluded) | kg | 93 |
| Allowable Workpiece Load | Vertical | kg | 90 |
Horizontal | kg | 180 |
| Allowable Load | F | N | 12918 |
| Strength of Roller Gear Cam |  | N.m | 257 |
| Max strength of Roller Gear Cam | N.m | 471 |
| Allowable bending torque | N.m | 775 |
| Allowable Inertia Load Capacity | kg.m2 | 1 |
| Clamping Torque | N.m | 360 |
Clamping System
(Pneumatic / Hydraulic) | Mpa | 5(Hydraulic) |

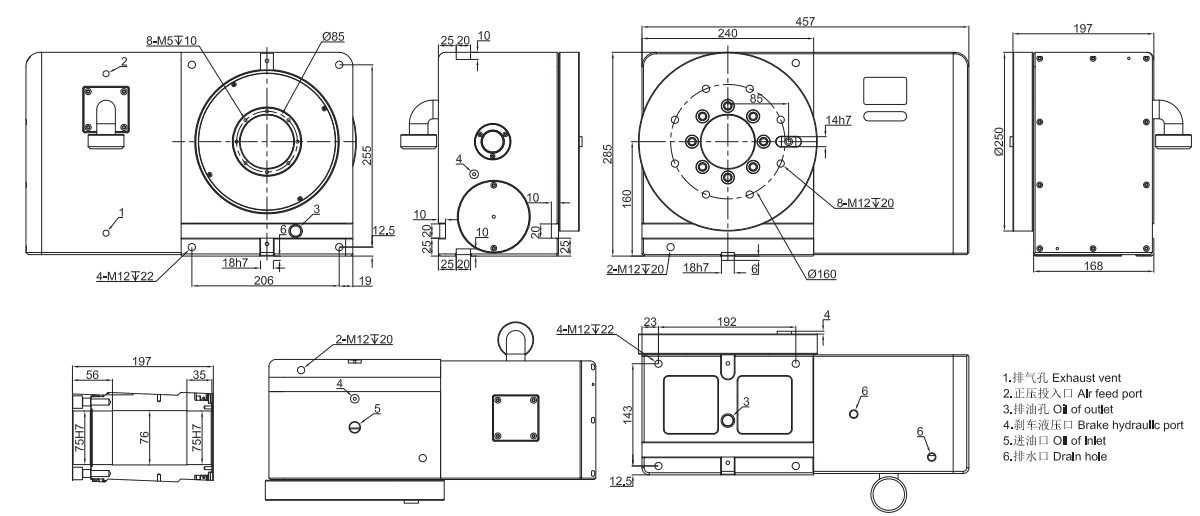

Product dimessions
