High Transmission Efficiency Fourth Axis indexing Rotary Table C315
Product description
C315 4 axis rotary table is a large numerical control turntable
with high rigidity and strong bearing capacity. It is suitable for
large vertical machining center. Generally, it should cooperate
with tailstock to further increase the bearing capacity. Suitable for cutting: Iron castings and steel machining
applications: large molds with multiple cutting surfaces
workpieces: automotive turbine housings, exhaust manifolds, tire
mold machining, and valve machining
Product features
C315 Silver 4 axis rotary table is Rollar CAM driver,It has many advantages
0.001° minimum positioning increment
Increased wear resistance – roller cam driveshaft
Can be used vertically or horizontally
High clamping force: full circular hydraulic clamping, no deviation
during heavy machining
High precision bearing: uses 2 high precision bearings for support
to increase positional accuracy during rapid movement
Product parameters
| Description | unit | SILVER-C315 |
| Table Diameter | mm | Ø315 |
| Diameter of Table Central Hole | mm | Ø105H7 |
| Center Height (Vertical) | mm | 225 |
| Speed Reduction Ratio | / | 60 |
| Max. Rotation Rate of Table (Calculate with Fanuc α Motor) | rpm | 50 |
| Indexing Precision | sec. | ±20 |
| Repeatability | sec. | ±4 |
| Net Weight (servo motor excluded) | kg | 225 |
| Allowable Workpiece Load | Vertical | kg | 165 |
Horizontal | kg | 330 |
| Allowable Load | F | N | 31572 |
| Strength of Roller Gear Cam |  | N.m | 690 |
| Max strength of Roller Gear Cam | N.m | 1332 |
| Allowable bending torque | N.m | 3195 |
| Allowable Inertia Load Capacity | kg.m2 | 5.2 |
| Clamping Torque | N.m | 1080 |
Clamping System
(Pneumatic / Hydraulic) | Mpa | 5(Hydraulic) |

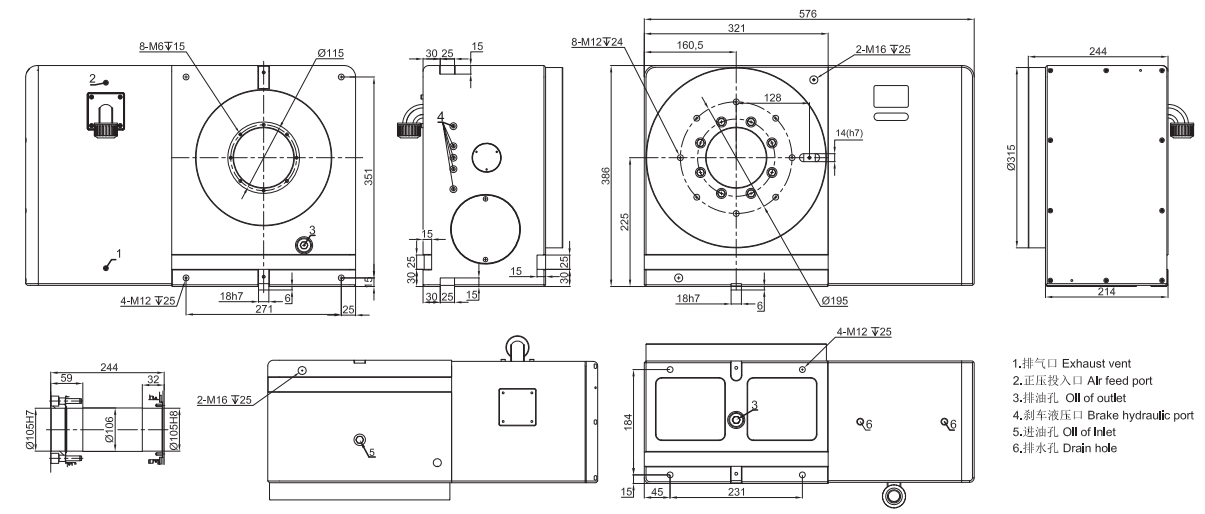

Pruduct dimession

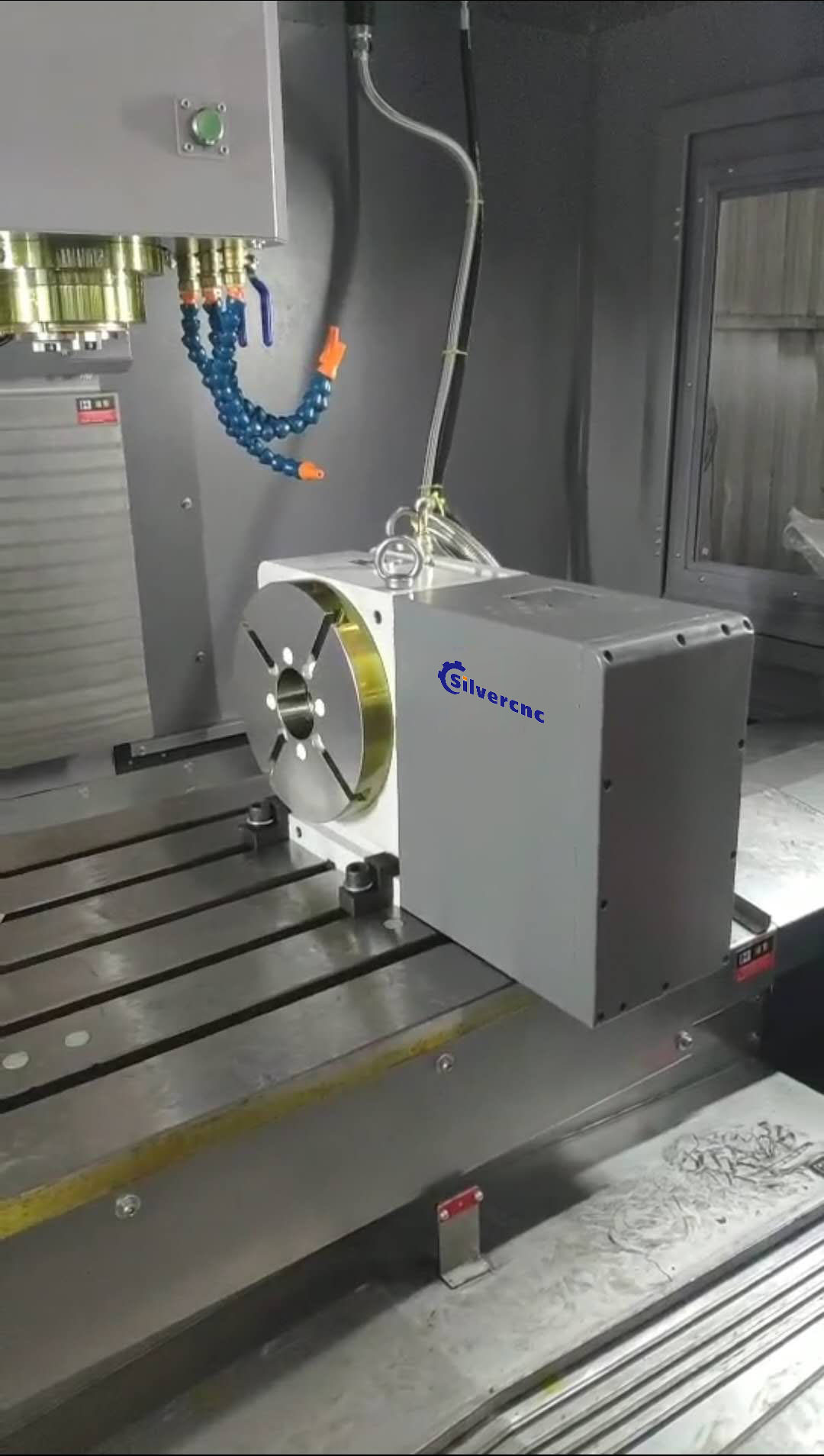

Product details and application
Customized service
Products can be customized according to customer requirements, you
can change the shape and color of the sheet metal motor cover, you
can change the LOGO,as the following photo show:
