NaNoTiALCrN Coated 3 Flute Flattened Carbide End Mills

Ask Lasest Price
Brand Name :	silvercnc
Model Number :	PML-3EL-H
Payment Terms :	T/T, L/C
Supply Ability :	NEGOTIATION
Delivery Time :	7 work days
Certification :	ISO9001
Price :	NEGOTIATION

Add to Cart

Product Details
Company Profile

NaNoTiALCrN Coated 3 Flute Flattened Carbide End Mills

PML series 3-flute flattened high performance caride end mill cutting tool

Product Feature

Applicable of high efficiency machining in a variety of materials under HRC50, while significantly promoting machinability of soft materials such as carbon steel, low carbon alloy steel underHRC40.

Unique cutting edge design, balancing edges strength and sharpness, with low cutting force.

Light yellow coating allows for better wear observation.

Advanced coating after-treatment technology, for closer combination with substrate, lower friction and superior surface quality.

With new superlattice coatings technology, for excellent wear resistance, oxidation resistance, thermal stability and lubrication performance

Application range

Applicable to high-efficiency machining in a variety of materials under HRC50, e.g. non-ferrous alloy, steel, pre-hardened steel, stainless steel, especially suitable for soft materials such as carbon steel, low carbon alloy steel under HRC40. With excellent cutting performance in both dry and wet cutting.

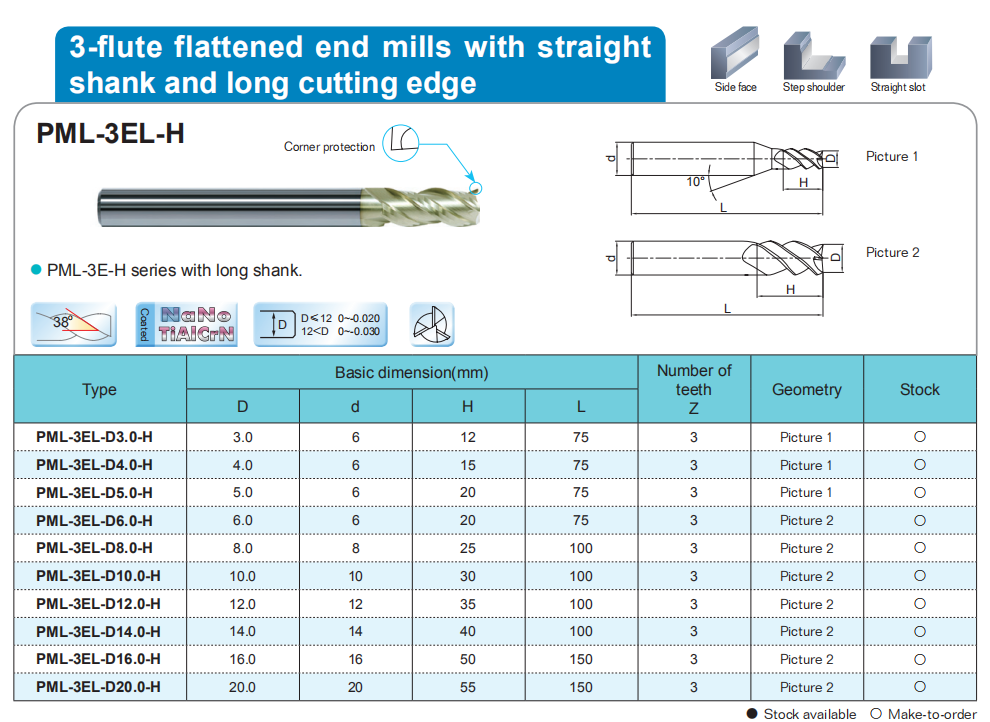

Product Parameters

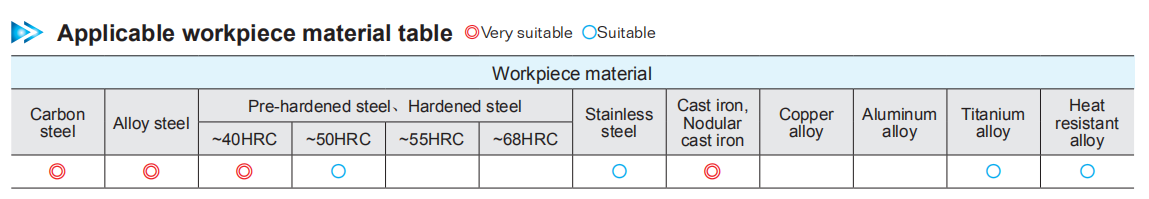

Workpiece material
