    Swivel Base Machine Vice GT100-I Modular Tool Maker Vise 100mm

    Ask Lasest Price
    Brand Name : HIP/Silvercnc
    Model Number : silver-GT100-I
    Price : $300-1000
    Payment Terms : T/T, L/C
    Supply Ability : 200pcs per month
    Delivery Time : 5-7 work days
    Certification : ISO9001
    • Product Details
    • Company Profile

    Swivel Base Machine Vice GT100-I Modular Tool Maker Vise 100mm

    Tool maker vise precision modular vises with swivel base for machine tool


    PRODUCT CHARACTERISTICS


    1. Model A precision tool Series, with complete dimensions and specifications, grip design, the handle can be arbitrarily rotated to adjust the size of the clamping workpiece. The handle wheel has an inner hexagonal design, which can be used for pressurizing and locking hex wrenches

    2. Precise screw and nut can effectively ensure the service life, quality and precision.
    3. One-way bevel design, which can automatically correct the deformation of the main body.


    PRODUCT PARAMETERS

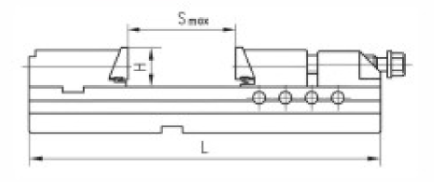

    Order No.B (mm)H(mm)Smax (mm)L(mm)Clamping force(Kg)
    GT100-I100301002703000
    GT125-I125401503453000
    GT150A-I150502004205000
    GT150B-I150503005205000
    GT150C-I150504006205000
    GT175A-I175602004556000
    GT175B-I175603005556000
    GT175C-I175604006556000
    GT175D-I175605007556000
    GT175E-I175606008556000
    GT200A-I2006520049510000
    GT200B-I2006530059510000
    GT200C-I2006540069510000
    GT200D-I2006550079510000
    GT200E-I2006560089510000
    GT300A-I3008020053512000
    GT300B-I3008030063512000
    GT300C-I3008040073512000
    GT300D-I3008050083512000
    GT300E-I3008060093512000
    GT300F-I30080700103512000
    GT300G-I30080800113512000

    product detail
