CNC Electronic handwheel with NEMICON UFO Serise pulser MK

hand wheel description

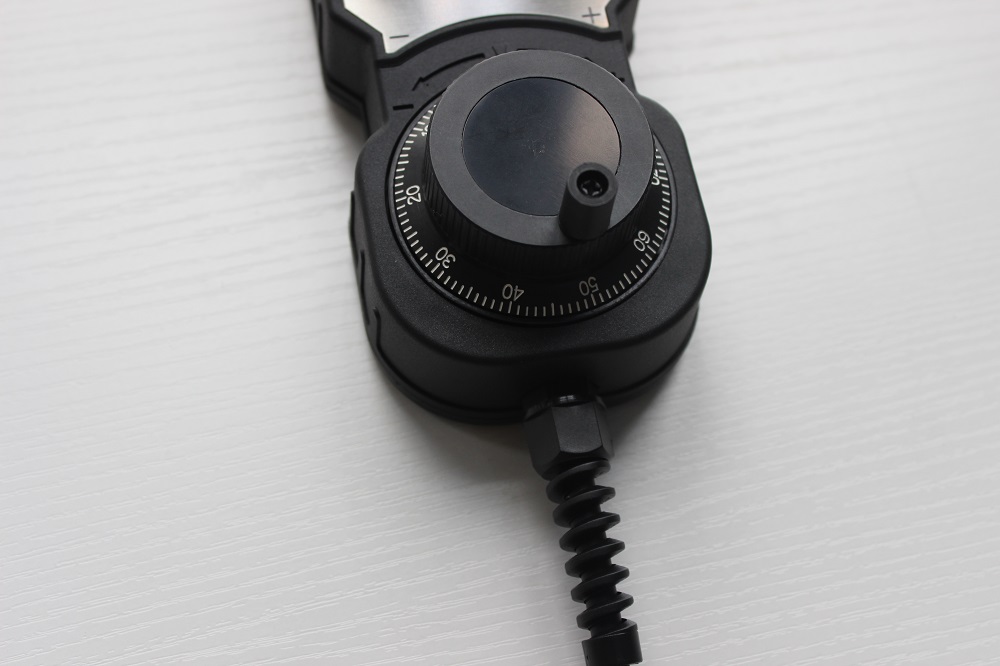

The MK series portable manual handle type Incremental rotary encoders are Ideal for manual pulse Input applications including NC machinery and milling machines. The encoders can be easily connected/dlsconnected with the D-sub connector.With the electronic handwheel from MK series , you can use the feed drive to make very precise movements in the axis slides in proportion to the rotation of the handwheel. As an option, the handwheels are available with mechanical detent

High precision electronic hand wheel feature
1. Suitable for a variety of control systems such as: Fanuc,Siemens,Mitsubishi,Heidenhain,Fagor.
2. Axis and ratio options can be customized according to requirements.
3. Compact, light and RoHS compliant.
4. The rotary cover can be marked according to customers.
5. Waterproof and anti falling,oil pollution environment can also be protected.

Handwheel System selection

Handwheel specifications

Wiring diagram

		Line color	signal	describe
Pulse generator		red	v+	According to the requirements of control system
		black	OV
		yellow	A
		white	B
		pink	A¯	Only when differential signal output is selected
		green	B¯
Magnification		Light green black	X1	Magnification switch
		Light blue black	X10
		Transparent black	X100
		Dark blue	COM	Common point
			OFF	Coordinate axis switch, no wiring
Axis		Trace	X axis
		orange	Y axis
		Light blue	Z axis
		Dark blue	4 axis
		grey	5 axis
		transparent	LED+	DC5V-24V
		Lavende	LED-	OV
