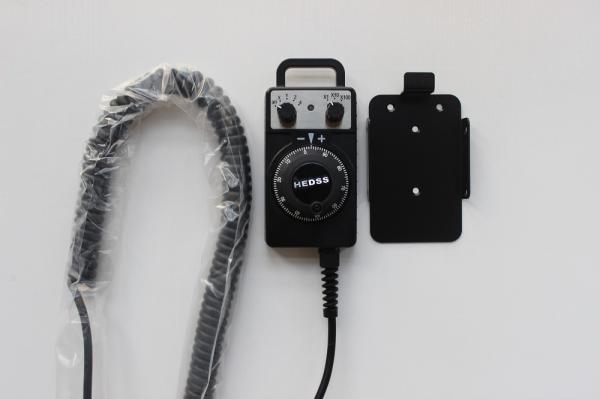

CNC Machine Electronic Hand wheel with HEDSS metal pulse generator HK

Hand wheel description

Electronic hand wheel is also known as manual pulse generation, hand pulse, hand pulse generator, etc.Used for zero correction and signal segmentation of CNC machine tools, printing machines, etc.When the handwheel rotates, the encoder generates a signal corresponding to the handwheel motion.The coordinates are selected and located by the NUMERICAL control system.

High precision electronic hand wheel
1. Suitable for a variety of control systems such as: Fanuc,Siemens,Mitsubishi,Heidenhain,Fagor
2. Axis and ratio options can be customized according to requirements
3. Compact, light and RoHS compliant
4. The rotary cover can be marked according to customers

Handwheel System selection

Handwheel specifications

Wiring diagram

		Line color	signal	describe
Pulse generator		red	v+	According to the requirements of control system
		black	OV
		yellow	A
		white	B
		pink	A¯	Only when differential signal output is selected
		green	B¯
Magnification		Light green black	X1	Magnification switch
		Light blue black	X10
		Transparent black	X100
		Dark blue	COM	Common point
			OFF	Coordinate axis switch, no wiring
Axis		Trace	X axis
		orange	Y axis
		Light blue	Z axis
		Dark blue	4 axis
		grey	5 axis
		transparent	LED+	DC5V-24V
		Lavende	LED-	OV

product detail
