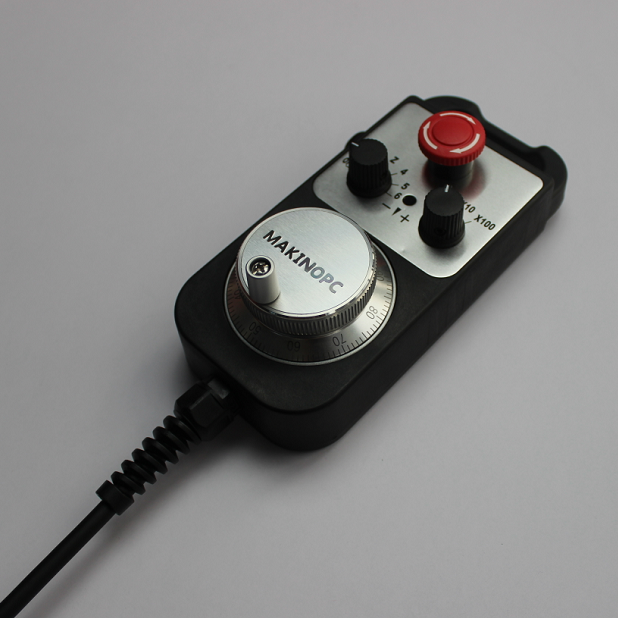

CNC Machine Emergency stop Electronic Hand wheel can customize

electronic hand wheel description

Hand pulse generator (electronic hand wheel) is mainly used to set the working origin of CNC machine tools, step fine adjustment of manual mode, interrupt insertion in processing and other actions.The band switch is used to select the axis and the multiplier, and the pulse ENCODER is used to send the pulse for the convenience of system acquisition.Manual wiring diagram of hand pulse generator (electronic hand wheel) is classified according to different power supply voltage, resolution and signal output types, thus forming handheld units suitable for all kinds of CNC control systems

Handwheel System selection

Handwheel specifications

Wiring diagram

		Line color	signal	describe
Pulse generator		red	v+	According to the requirements of control system
		black	OV
		yellow	A
		white	B
		pink	A¯	Only when differential signal output is selected
		green	B¯
Magnification		Light green black	X1	Magnification switch
		Light blue black	X10
		Transparent black	X100
		Dark blue	COM	Common point
			OFF	Coordinate axis switch, no wiring
Axis		Trace	X axis
		orange	Y axis
		Light blue	Z axis
		Dark blue	4 axis
		grey	5 axis
		transparent	LED+	DC5V-24V
		Lavende	LED-	OV

High precision electronic hand wheel feature

Ultra-thin design, suitable for manual operation of CNC machine tools.
The resolution is 25P/R, 50P/R and 100P/R.
It's thin, light and feels great.
There are a variety of electronic output modes to choose from.
The NC equipment can run reliably for a long time.
The output signals are phase A and phase B.
Used for zero correction and signal segmentation of CNC machine tools
