5 Face Industrial Bridge Type Heavy Load Machining Center Efficient
Cutting s-12011
Introduce
The overall layout of the machine tool is fixed in the gantry frame
structure, and the table is moved in the X axis on the base; the
column is fixed at both ends of the base, and the beam of the
headstock on the column is moved up and down by Z axis.
X, Y, Z three feed axes are driven by FANUC feed motor, good
stability, reliable operation. X axis and Y axis are driven by ball
screw with long lead; The Z axis adopts the motor and the ball
screw direct connection, and the Z axis adopts the Nitrogen balance
cylinder to balance the weight of the sliding pillow.
Product Characteristics
1.X/Y axis adopts heavy roller linear guide rail with high
precision.
2. Z-axis adopts extra-wide square guide rail with strong seismic
capability.
3.Z axis adopts double weight of hydraulic and nitrogen to ensure
the stability when moving up and down at high speed.
4. Equipped with double helix and chain chip eliminator, automatic
cleaning waste residue.
5. A variety of door width can meet a variety of processing needs.
6.This machine use ring-type enclosed cover, structural safety and
reliability.
APPLICATION AREA
This machine is suit for milling; boring; drilling; threading and
etc, machining ferrous and non ferrous metals, it can finished
various process with only once install the work piece, ensure the
quality of products and production efficiency.
PRODUCT PARAMETERS
| Item | Unit | S-L2011 |
| X/Y/Z axis Travel | mm | 2000/1200/800 |
| Door Width | mm | 1200 |
| Spindle Nose to Work table | mm | 50-850 |
| 3 Axis Guideway | / | X/Y: roller track, Z: rectangular slide track |
| Work table Size | mm | 2000X900 |
| Max Loading | kg | 2000 |
| T-slot (numbe r-size*distance) | mm | 7-22X125 |
| 3 Axis Rapid Move Speed | M/min | 10/10/10 |
| Cutting Feed Speed | mm/min | 0-10000 |
| Transmission Type | / | Belt type/straight knot type/gear type |
| Spindle Rotation Speed | rpm | 8000 |

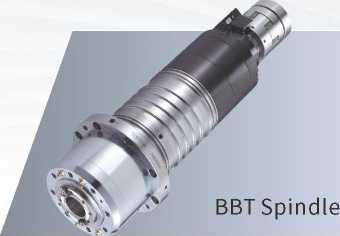

| Spindle Spec | / | BT50 |
| Spindle Motor | kw | 18.5 |
| 3 Axis Motor | kw | 4.5/4.5/4.5 |
| Position Precision | mm | ±0.005/300 |
| Repeat Position Precision | mm | ±0.003 |
| Machine Weight | kg | 14000 |
| Machine Size | mm | 7500 X 3500 X 4000 |
FAQ
Q1: Can I have your quotation?
A: First, please offer us the information of your material size,
without these parameter, we are not able to recommend you the
suitable machine.
Q 2: How to operate and maintain the machine?
A : First, we will provide a professional and detailed USER GUIDE
to you with the machine; Second, we will debug the machine in the
best status for you; At last, we also provide abroad technical
training service.
Q 3: Where is your factory located ? How can I visit it ?
A : Our factory is located in shenzhen city,guangdong
province,China. You can fly to shenzhen air port, we will pick you
up.
Q 4 :What’s dimension of your workpiece ?
A : In order to configure suitable size machine for you. we should
get your info. We can professional design as your requirement.
Q 5: Can you guarantee you quality?
A : Of course. We are the ferrous metal and non-ferrous metal
foundry production series sand core machine manufacture factory
,more important, we put a high value on our reputation. Best
quality is our principle all the time. You can be assured on our
production completely.
Product deails
