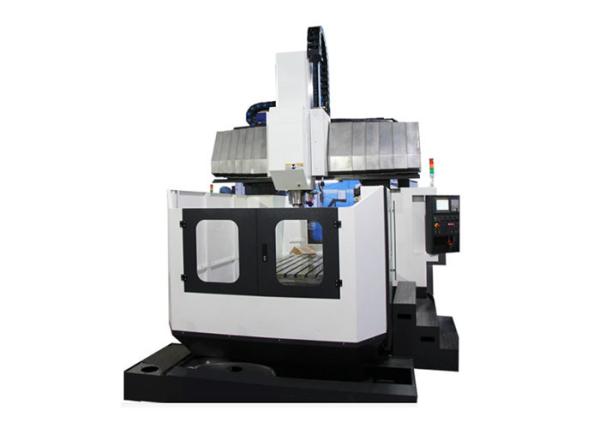

Various Travel Choice For Heavy Duty Double Column Machining Center
S-L2019
Introduce
Double column machining center is a kind of multiple-funtion cnc
processing machine. The latest innovative design not only for mould
& die applications but also for aerospace, construction, textile
machinery industriesand general machining; with high efficiency,
high accuracy and high power characteristics combined with a large
work envelope.
Product Characteristics
1.X/Y axis adopts heavy roller linear guide rail with high
precision.
2. Z-axis adopts extra-wide square guide rail with strong seismic
capability.
3.Z axis adopts double weight of hydraulic and nitrogen to ensure
the stability when moving up and down at high speed.
4. Equipped with double helix and chain chip eliminator, automatic
cleaning waste residue.
5. A variety of door width can meet a variety of processing needs.
6. High grade cast iron structure and aging treatment for super
stability ,reliability ,high accuracy &longer machine life.
APPLICATION AREA
It's mainly applicable to the aviation, aerospace, automotive,
military, energy, information, mold and other industries parts
processing. It is characterized by high speed, high precision, high
flexibility and environmental protection. Its performance index and
precision index completely accord with the national standard.
Through modular design, the products can be serialized and
customized according to the market demand, and its good performance
and price ratio is the best choice for customers at home and
abroad.
PRODUCT PARAMETERS
| Item | Unit | S-L2019 |
| X/Y/Z axis Travel | mm | 2000/1900/800 |
| Door Width | mm | 1900 |
| Spindle Nose to Work table | mm | 70-870 |
| 3 Axis Guideway | / | X/Y: roller track, Z: rectangular slide track(Optional triaxial
roller rail) |
| Work table Size | mm | 2000X1700 |
| Max Loading | kg | 4500 |
| T-slot (numbe r-size*distance) | mm | 7-22X200 |
| 3 Axis Rapid Move Speed | M/min | 10/10/10 |
| Cutting Feed Speed | mm/min | 0-10000 |
| Transmission Type | / | Belt type/straight knot type/gear type |
| Spindle Rotation Speed | rpm | 8000 |
| Spindle Spec | / | BT50 |
| Spindle Motor | kw | 22 |
| 3 Axis Motor | kw | 7/4.5/4.5 |
| Position Precision | mm | ±0.005/300 |
| Repeat Position Precision | mm | ±0.003 |
| Machine Weight | kg | 22000 |
| Machine Size | mm | 7500 X 4600 X 4000 |
FAQ
Q1: How to send my enquiry?
A : You can contact us by email, phone call, message (We Chat,
Skype).
Q 2: How to operate and maintain the machine?
A : First, we will provide a professional and detailed USER GUIDE
to you with the machine; Second, we will debug the machine in the
best status for you; At last, we also provide abroad technical
training service.
Q 3: Where is your factory located ? How can I visit it ?
A : Our factory is located in shenzhen city,guangdong
province,China. You can fly to shenzhen air port, we will pick you
up.
Q 4:How long is your delivery time?
A: It is according to the items and quantity. Generally 20 days.
Q 5: Can you guarantee you quality?
A : Of course. We are the ferrous metal and non-ferrous metal
foundry production series sand core machine manufacture factory
,more important, we put a high value on our reputation. Best
quality is our principle all the time. You can be assured on our
production completely.
