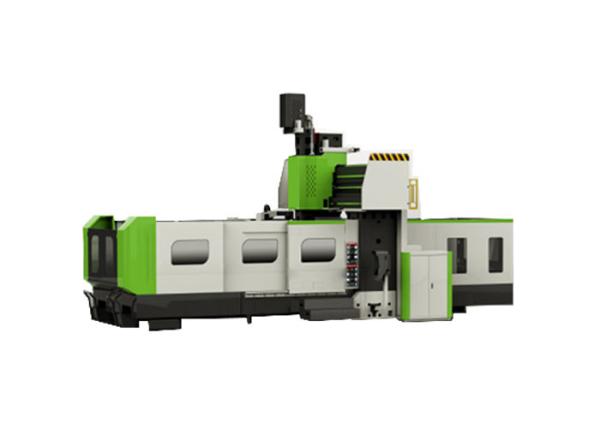

Heavy Duty Double Column Milling Machines Powerful Machining
Capacity S-L5025
Introduce
1. All the basic parts of the machine tools are cast, processed and
installed by our company.The casting material is HT250 high quality
cast iron, which has been processed by thermal aging and vibration
aging to fully eliminate the internal stress of the casting.Beam,
column, sliding pillow guide all through super - audio quenching
treatment.
2. Bed guide is equipped with rigid plate protection cover, beam,
column organ type protection cover.
3. According to customer needs, special specifications can be
customized, can be configured with 3-4 sets of power milling head
Product Characteristics
1.X/Y axis adopts heavy roller linear guide rail with high
precision.
2. Z-axis adopts extra-wide square guide rail with strong seismic
capability.
3.Z axis adopts double weight of hydraulic and nitrogen to ensure
the stability when moving up and down at high speed.
4. Equipped with double helix and chain chip eliminator, automatic
cleaning waste residue.
5. A variety of door width can meet a variety of processing needs.
APPLICATION AREA
It's mainly applicable to the aviation, aerospace, automotive,
military, energy, information, mold and other industries parts
processing. It is characterized by high speed, high precision, high
flexibility and environmental protection. Its performance index and
precision index completely accord with the national standard.
Through modular design, the products can be serialized and
customized according to the market demand, and its good performance
and price ratio is the best choice for customers at home and
abroad.
PRODUCT PARAMETERS
| Item | Unit | S-L5025 |
| X/Y/Z axis Travel | mm | 5200/2500/1000(1250) |
| Door Width | mm | 2500 |
| Spindle Nose to Work table | mm | 250-1250 |
| 3 Axis Guideway | / | X/Y: roller track, Z: rectangular slide track(Optional triaxial
roller rail) |
| Work table Size | mm | 5000X2200 |
| Max Loading | kg | 14000 |
| T-slot (numbe r-size*distance) | mm | 11-22X180 |
| 3 Axis Rapid Move Speed | M/min | 8/8/8 |
| Cutting Feed Speed | mm/min | 0-10000 |
| Transmission Type | / | Belt type/straight knot type/gear type |
| Spindle Rotation Speed | rpm | 6000 |
| Spindle Spec | / | BT50 |
| Spindle Motor | kw | 22/26 |
| 3 Axis Motor | kw | 9/7/7 |
| Position Precision | mm | ±0.01/300 |
| Repeat Position Precision | mm | ±0.01 |
| Machine Weight | kg | 45000 |
| Machine Size | mm | 13500 X 5500 X 4800 |
FAQ
Q1: Are you a factory?
A1: Yes,we are a professional factory that was founded in 2013
Q2: Payment term
A2: After the contract is signed, you shall pay 40% deposit, then
the contract comes into effect.
Q3:Production time
A3: 20 days upon order confirmation
Q4:Check the acceptance
A4: When receiving the goods, please check product carefully:
Whether there is packing damage, leakage and whether the goods are
damaged; Whether product quantity and accessories are same as
required; Whether all machine details are fine. If there is any
problem about machine, please take pictures and contact us
immediately.
Q5:Warranty time
A5: 1) One year warranty. During the first year, if some parts need
replacing, we will free provide. And we offer life-long
maintenance. After warranty time, customers shall pay money for
component and express fee.We can provide debugging on site and
training for customers, but customers need to pay expense. In this
case, the customer will pay for air tickets between China and
buyer's destination and free provide accommodation and meals. 2)12
months warranty begins from the day when the machine arrives. If it
can’t work normally, my company will send engineers to your factory
within 24 hours after receiving your notice. We still support
maintenance for machine even warranty expires. Each cnc machine
leaving the factory will be along with related English instructions
including maintenance manual and operation manual.
Q6:OEM Service
A6: We accept purchase orders with customers' brand or trade mark.
Product deails
