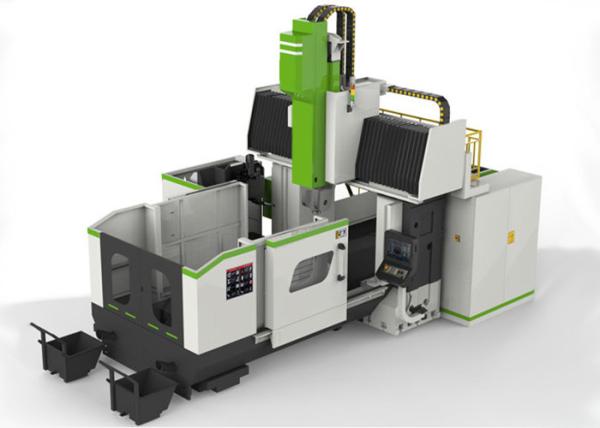

Metal Cutting heavy duty double column machining center 6000rpm
s-L2515
Introduce
CNC grantry processing center is the table mobile fixed beam gantry
boring and milling processing center, by the bed, work table,
columns, beams, sliding seat, sliding pillow and other basic parts
and Z axis balance system, electrical system, cooling system, chip
removal system, knife library and other components.
Product Characteristics
1.X/Y axis adopts heavy roller linear guide rail with high
precision.
2. Z-axis adopts extra-wide square guide rail with strong seismic
capability.
3.Z axis adopts double weight of hydraulic and nitrogen to ensure
the stability when moving up and down at high speed.
4. Equipped with double helix and chain chip eliminator, automatic
cleaning waste residue.
5. A variety of door width can meet a variety of processing needs.
6.The body of machine is treated by stress and precise finish,
profesionally install imported parts according to international
standard.
APPLICATION AREA
Widely used in machining departments of medium, heavy black,
non-ferrous metal plane, bevel and groove milling and boring and
reaming of holes.It is characterized byhigh precision, high
flexibility and environmental protection.The machine tool can
realize the five-side processing of various kinds of complicated
parts such as plates, plates, shells and molds in one clamping
process.
PRODUCT PARAMETERS
| Item | Unit | S-L2515 |
| X/Y/Z axis Travel | mm | 2500/1500/800 |
| Door Width | mm | 1500 |
| Spindle Nose to Work table | mm | 70-870 |
| 3 Axis Guideway | / | X/Y: roller track, Z: rectangular slide track |
| Work table Size | mm | 2500X1100(1300) |
| Max Loading | kg | 4000 |
| T-slot (numbe r-size*distance) | mm | 7-22X150 |
| 3 Axis Rapid Move Speed | M/min | 10/10/10 |
| Cutting Feed Speed | mm/min | 0-10000 |
| Transmission Type | / | Belt type/straight knot type/gear type |
| Spindle Rotation Speed | rpm | 6000 |
| Spindle Spec | / | BT50 |
| Spindle Motor | kw | 18.5/22 |
| 3 Axis Motor | kw | 4.5/4.5/4.5 |
| Position Precision | mm | ±0.005/300 |
| Repeat Position Precision | mm | ±0.003 |
| Machine Weight | kg | 22000 |
| Machine Size | mm | 8500 X 4000 X 4200 |
FAQ
Q1: What's your warranty for the machine?
A1: One Year Warranty(all the machine parts can be replaced within
one year free of charge, notincluding the manmade broke)
Q2: What's your Delivery Time?
A2: Usually it is 3-5 days if the machine is in stock; If not, the
delivery time is 10-25 days accordingto your required quantity.
Q3: What if I do not know how to choose the machine to make my
products?
A3: Please let us know the product you want to make, the material
to make it, the production capacity you need, the mold size. We
will advice you suitable machine according to your requirements.
