400 UMT 50mm 5 Axis CNC VMC Machine For Iron Processing

Ask Lasest Price
Brand Name :	KEDE
Model Number :	KMC400 UMT
Price :	$200000-300000
Payment Terms :	T/T, L/C
Supply Ability :	50pcs per month
Delivery Time :	30 work days

Add to Cart

Product Details
Company Profile

400 UMT 50mm 5 Axis CNC VMC Machine For Iron Processing

400 UMT Φ50 5 Axis CNC VMC Machine For Iron Processing

Product Characteristics

Mineral casting frame of machine tool

1. Coefficient of thermal expansion is only 1/20 of cast iron 一 smaller thermal deformation error

2. Damping of mineral casting frame is 6 times of cast iron - better vibration performance

3. One-step molding technology, greatly reduce cost and time of subsequent processing

4. Room temperature during manufacturing process,preferable bed material of international precision machine

Center of gravity drive

1. Stronger and more smoothly drive

2. Center of gravity drive with swinging type rotary table

3. Effectively suppress vibration toeliminate reverse break joint

4. Provide users with ideal processing performance

PRODUCT PARAMETERS

Item	Technical parameter	KMC400 UMT(With turning)
Working range	Maximum swing diamete mm	Φ50
	Workbench diameter mm	Φ450, 370x370 ▲
	Maximum product weight Kg	500
Route	X/Y7Z-axis motion quantity mm	350/350/340
	A-axis rotation range	-130°~+130°
	C-axis rotation range	unlimited
Tool spindle	Maximum torque S1 / S6 Nm	42/62 5.6/10 ▲
	Maximum Rpm rpm	15000 20000▲
	Rated power kw	15.5 7.5 ▲
	Clamp	HSK-A63 HSK-A50▲
	Spindle central water discharge	Unsupported, supported ▲
	Spindle-directing	supported
	Positioning lock	supported
A-axis drive	A-axis drive mode	Direct drive torque motor
A-axis drive	A-axis drive torqueS 1 / S6 Nm	689 / 1250 (single drive)
C-axis drive	C-axis drive mode	Direct drive torque motor
C-axis drive	C-axis drive torqueS 1 / S6 Nm	341 / 580
Maximum Feeding speed	X-axis/ Y-axis/ Z-axis m / min	48,60▲
	A-axis rpm	30
	C-axis rpm	600
Control resolution	X/Y/Z-axis mm	0.001,0.0001 ▲
Control resolution	C-axis	0.001°,0.0001°▲
Full close-loop control	X/Y/Z-axis	Standard
Full close-loop control	A-axis/C-axis	Standard
Positioning accuracy	X/Y/Z-axis mm	0.008,0.005 ▲
Positioning accuracy	A-axis/C-axis mm	8", 5" ▲
Repeated positioning accuracy	X/Y/Z-axis mm	0.005,0.003 ▲
Repeated positioning accuracy	A-axis/C-axis	5", 3"▲
Tool Magazine	Capacity	22
	Maximum tool diameter mm	Φ63
	Maximum tool length mm	230
	Maximum tool weight kg	6
Attachment ▲	Wireless probe mm	repeated accuracy±0.003
Attachment ▲	Automatic q-setter mm	repeated accuracy±0.003
Machine weight	Net weight	about 6 tons
CNC System	Supplier	KEDE Numerical Control Co., LTD
	Type	GNC62 Bus mode CNC system
	HMI	15inches,191inches

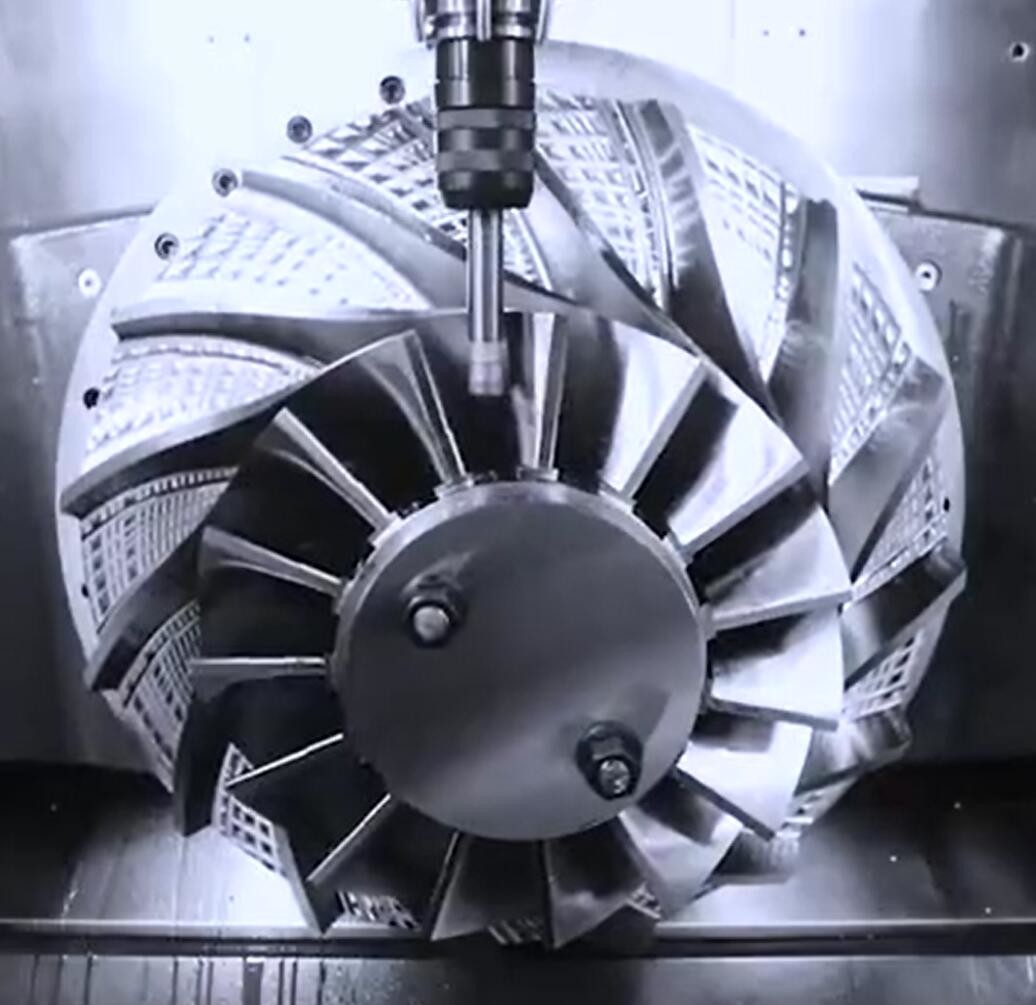

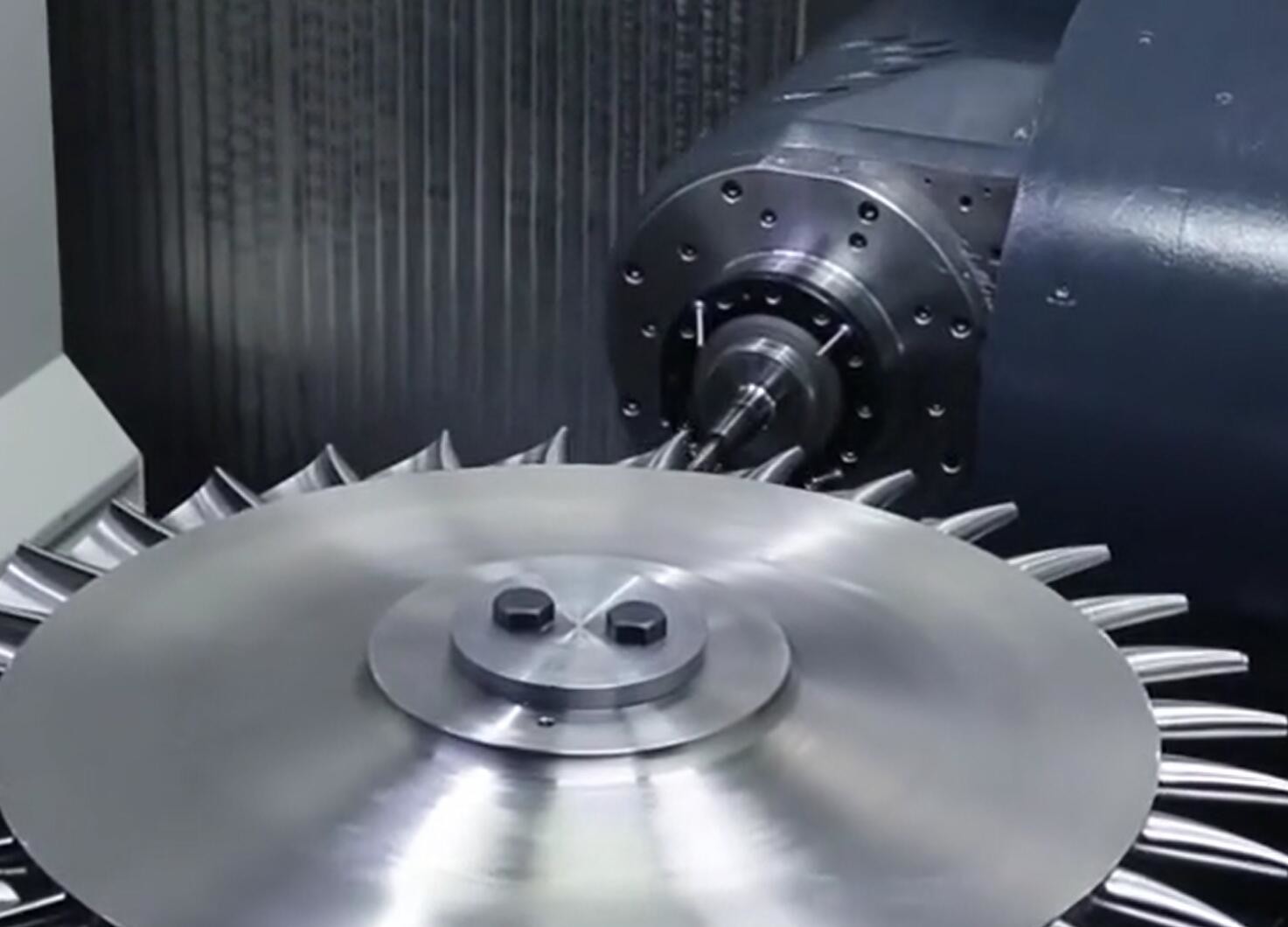

Proudct Deails

400 UMT 50mm 5 Axis CNC VMC Machine For Iron Processing

FAQ

Q1: What's your warranty for the machine?

A1: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke)

Q2: I did not cooperate the machine before? How can I run it if I got the machines?

A2: We would like to offer you the details about how to install and operate the machine step by step in our factory

Q3: What if I do not know how to choose the machine to make my products?

A3: Please let us know the product you want to make, the material to make it, the production capacity you need, the mold size. We will advice you suitable machine according to your requirements.

Q4: What's your Delivery Time?

A4: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity.
