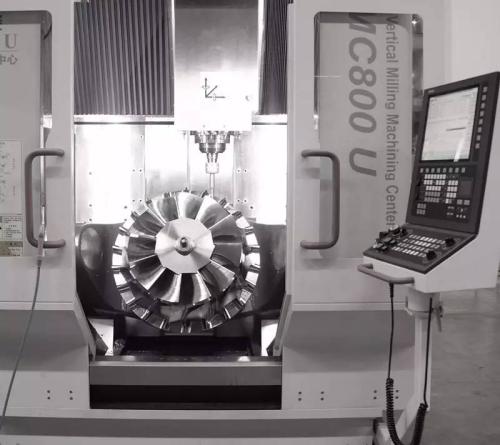

Metal Cutting 800U 5 Axis Turning and milling Vertical Machining
Center
Product Characteristics
Five axis numerical control system highlights
1. Synchronous thread cutting
2. Cone interpolation
3. Polar coordinate interpolation
4. Cylindrical surface interpolation ・ Spline interpolation
5. Complete Five-Axis Technology (RTCP TCTP Bevel Processing)
6. System supports wireless probe, tool setting tool access
7. Error compensation function - two-way pitch compensation,
straightness compensation (including isotropic deflection
compensation) and verticality compensation
8. Secondary Development and Offline 3D Simulation System
9. High-speed information interaction
10. High resolution, precise high frequency control scheduling
11. Precise position/angle perception
12. Multi-channel control technology
13. High-speed and high-precision machining
14. Variable pitch thread
15. Polar coordinate interpolation
Product Parameters
| Item | Technical parameter | KMC800S U |
| Working range | Maximum swing diamete mm | Φ1100 |
| Workbench diameter mm | Φ800x630 ▲ |
| Maximum product weight Kg | 1400 |
| Route | X/Y/Z-axis motion quantity mm | 800 / 800 / 550 |
| A-axis rotation range | -130°~+130° |
| C-axis rotation range | unlimited |
| Tool spindle | Maximum torque S1 / S6 Nm | 125/125▲/120▲/200 ▲ |
| Maximum Rpm rpm | 14000/18000 ▲/10000 ▲ |
| Rated power kw | 30 |
| Clamp | HSK-A63 |
Spindle central water discharge Spindle-directing | Unsupported, supported A supported |
| Positioning lock | Unsupported |
| A-axis drive | A-axis drive mode | Torque motor dual direct drive |
| Rated torque Nm | 5400 |
| C-axis drive | C-axis drive mode | Direct drive torque motor |
| Rated torque Nm | 1210 |
| Maximum Feeding speed | X/Y/Z m/min | 48 |
| A-axis rpm | 20 |
| C-axis rpm | 70 |
| Control solution | X/Y/Z-axis mm | 0.001,0.0001▲ |
| C-axis | 0.001°,0.0001°▲ |
| Full close-loop control | X/Y/Z-axis | Standard |
| A-axis/C-axis | Standard |
| Positioning accuracy | X/Y/Z-axis mm | 0.008,0.005 ▲ |
| A-axis/C-axis | 8", 5"▲ |
| Repeated positioning accuracy | X/Y/Z-axis mm | 0.005,0.003 ▲ |
| A-axis/C-axis | 5",3"▲ |
| Tool Magazine | Capacity | 42 |
| Maximum tool diamet mm | Φ125 |
| Maximum tool length mm | 300 |
| Maximum tool weight kg | 8 |
| Attachment ▲ | Wireless probe mm | repeated accuracy±0.003 |
| Automatic q-setter mm | repeated accuracy±0.003 |
| Machine weight | Net weight | about 17.5 tons |
| CNC System | Supplier | KEDE Numerical Control Co., LTD |
| iype | GNC62 Bus mode CNC system |
| HMI | 15inches,191inches |
Proudct Deails
FAQ
1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: GNC62 Bus mode CNC system
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working
days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.
4.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can
choose the best model for you , or you can choose the exact model
by yourself. You can also send us the products drawing ,we will
choose the most suitable machines for you .
5. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
8. What is the payment Terms ?
A : T/T ,40% initial payment when order ,60% balance payment before
shipment ;
