High Precision 800mm VMC Vertical Machining Center 600 UMT
Product Characteristics
Mineral casting frame of machine tool
1. Coefficient of thermal expansion is only 1/20 of cast iron 一
smaller thermal deformation error
2. Damping of mineral casting frame is 6 times of cast iron -
better vibration performance
3. One-step molding technology, greatly reduce cost and time of
subsequent processing
4. Room temperature during manufacturing process,preferable bed
material of international precision machine
Direct Drive
1. Good dynamic response ability
2. No reverse break joint, No transmission mechanical abrasion
3. Using Torque motor as main drive of rotate axis
4. U/UMT type C-axis configure low-speed/high-speed torque motor to
complete high precision milling and turning
Product Parameters
| Item | Technical parameter | KMC600 UMT(With turning) |
| Working range | Maximum swing diamete mm | Φ800 |
| Workbench diameter mm | Φ650 |
| Maximum product weight Kg | 500 |
| Route | X/Y/Z-axis motion quantity mm | 650 / 650 /450 |
| A-axis rotation range | -130°~+130° |
| C-axis rotation range | unlimited |
| Tool spindle | Maximum torque SI / S6 | 125/125▲ |
| Maximum Rpm rpm | 14000/18000▲ |
| Rated power kw | 30 |
| Clamp | HSK-A63 |
| Spindle central water discharge | Unsupported, supported ▲ |
| Spindle-directing | supported |
| Positioning lock | supported |
| A-axis drive | A-axis drive mode | Torque motor dual direct drive Nm |
| Rated torque Nm | 3760 |
| C-axis drive | C-axis drive mode | Direct drive torque motor |
| Rated torque Nm | 700 |
| Maximum Feeding speed | X-axis/ Y-axis/ Z-axis m / min | 48 |
| A-axis rpm | 30 |
| C-axis rpm | 800 |
| Control resolution | X/Y/Z-axis mm | 0.001,0.0001▲ |
| C-axis | 0.001°,0.0001°▲ |
| Full close-loop control | X/Y/Z-axis | Standard |
| A-axis/C-axis | Standard |
| Positioning accuracy | X/Y/Z-axis mm | 0.008,0.005 ▲ |
| A-axis/C-axis | 8”, 5"▲ |
| Repeated positioning accuracy | X/Y/Z-axis mm | 0.005,0.003 ▲ |
| A-axis/C-axis | 5", 3"▲ |
| Tool Magazine | Capacity Maximum tool diameter mm | 36 |
| Maximum tool diameter mm | Φ80 |
| Maximum tool length mm | 300 |
| Maximum tool weight kg | 8 |
| Attachment ▲ | Wireless probe mm | repeated accuracy±0.003 |
| Automatic q-sette mm | repeated accuracy±0.003 |
| Machine weight | Net weight | about 13tons |
| CNC System | Supplier | KEDE Numerical Control Co., LTD |
| Type | GNC62 Bus mode CNC system |
| HMI | 15inches,191inches |

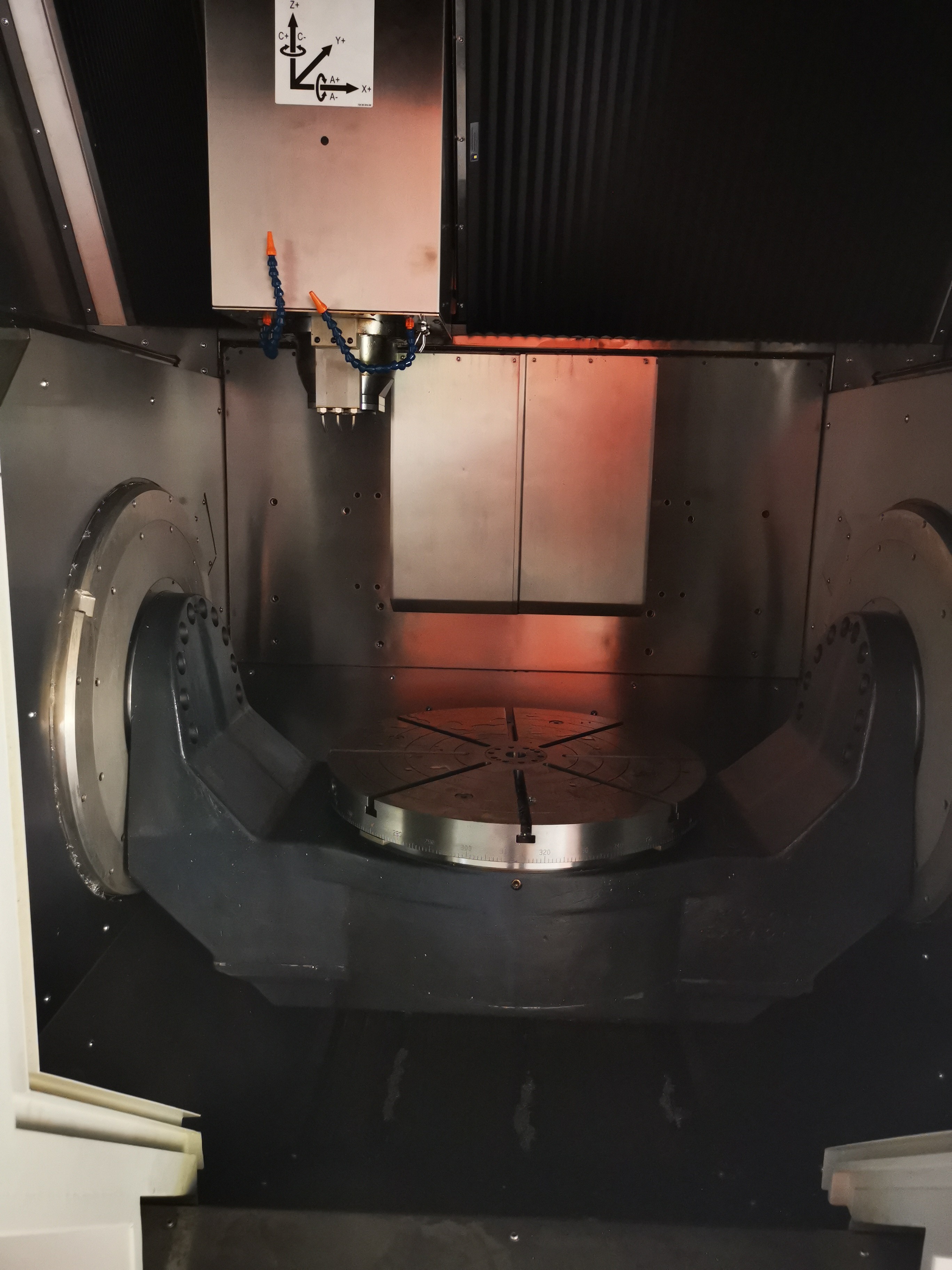

Proudct Deails
FAQ:
Q1: Are you a factory?
A1: Yes,we are a professional factory that was founded in 2013.
Q2: Payment term
A2: After the contract is signed, you shall pay 40% deposit, then
the contract comes into effect.
Q3: Production time
A3: 30-45 days upon order confirmation
Q4: Check the acceptance
A4: When receiving the goods, please check product carefully:
Whether there is packing damage, leakage and whether the goods are
damaged; Whether product quantity and accessories are same as
required; Whether all machine details are fine. If there is any
problem about machine, please take pictures and contact us
immediately.
Q5: Warranty time
A5: 1) One year warranty. During the first year, if some parts need
replacing, we will free provide. And we offer life-long
maintenance. After warranty time, customers shall pay money for
component and express fee.We can provide debugging on site and
training for customers, but customers need to pay expense. In this
case, the customer will pay for air tickets between China and
buyer's destination and free provide accommodation and meals. 2)12 months warranty begins from the day when the machine arrives. If
it can’t work normally, my company will send engineers to your
factory within 24 hours after receiving your notice. We still
support maintenance for machine even warranty expires. Each cnc
machine leaving the factory will be along with related English
instructions including maintenance manual and operation manual.
Q6: OEM Service
A6: We accept purchase orders with customers' brand or trade mark.
