Gantry Framework Structure Five Axis Vertical Machining Center
Improved gantry framework and complete machine structure design
Optimal Spindle support
1. Using vertical coordinate classic structure, have better spindle
stiffness
2. Two-arm CNC rotary swing workbench support
3. Y-axis using four guide way supports. Driver located in the
center
4. Annular tool magazine and bed of machine constructed
together-simple construction, space saving
Product Parameters
| Item | Technical parameter | KMC800S V |
| Working range | Maximum swing diamete mm | — |
| Workbench diameter mm | 1140x805 |
| Maximum product weight Kg | 1400 |
| Route | X/Y/Z-axis motion quantity mm | 800 / 800 / 550 |
| A-axis rotation range | — |
| C-axis rotation range | — |
| Tool spindle | Maximum torque S1 / S6 Nm | 125/125 ▲/120▲/200▲ |
| Maximum Rpm rpm | 14000/18000 ▲/10000▲ |
| Rated power kw | 30 |
| Clamp | HSK-A63 |
Spindle central water discharge Spindle-directing | Unsupported, supported A supported |
| Positioning lock | Unsupported |
| A-axis drive | A-axis drive mode | — |
| Rated torque Nm | — |
| C-axis drive | C-axis drive mode | — |
| Rated torque Nm | — |
| Maximum Feeding speed | X/Y/Z m/min | 48 |
| A-axis rpm | — |
| C-axis rpm | — |
| Control solution | X/Y/Z-axis mm | 0.001,0.0001▲ |
| C-axis | — |
| Full close-loop control | X/Y/Z-axis | Standard |
| A-axis/C-axis | — |
| Positioning accuracy | X/Y/Z-axis mm | 0.008,0.005 ▲ |
| A-axis/C-axis | — |
| Repeated positioning accuracy | X/Y/Z-axis mm | 0.005,0.003 ▲ |
| A-axis/C-axis | |
| Tool Magazine | Capacity | 42 |
| Maximum tool diamet mm | Φ125 |
| Maximum tool length mm | 300 |
| Maximum tool weight kg | 8 |
| Attachment ▲ | Wireless probe mm | repeated accuracy±0.003 |
| Automatic q-setter mm | repeated accuracy±0.003 |
| Machine weight | Net weight | about 17.5 tons |
| CNC System | Supplier | KEDE Numerical Control Co., LTD |
| iype | GNC62 Bus mode CNC system |
| HMI | 15inches,191inches |
Five axis numerical control system highlights
1. Synchronous thread cutting
2. Cone interpolation
3. Polar coordinate interpolation
4. Cylindrical surface interpolation ・ Spline interpolation
5. Complete Five-Axis Technology (RTCP TCTP Bevel Processing)
6. System supports wireless probe, tool setting tool access
7. Error compensation function - two-way pitch compensation,
straightness compensation (including isotropic deflection
compensation) and verticality compensation
8.Secondary Development and Offline 3D Simulation System
9. High-speed information interaction
10. High resolution, precise high frequency control scheduling
11. Precise position/angle perception
12. Multi-channel control technology
13. High-speed and high-precision machining
14. Variable pitch thread
15. Polar coordinate interpolation

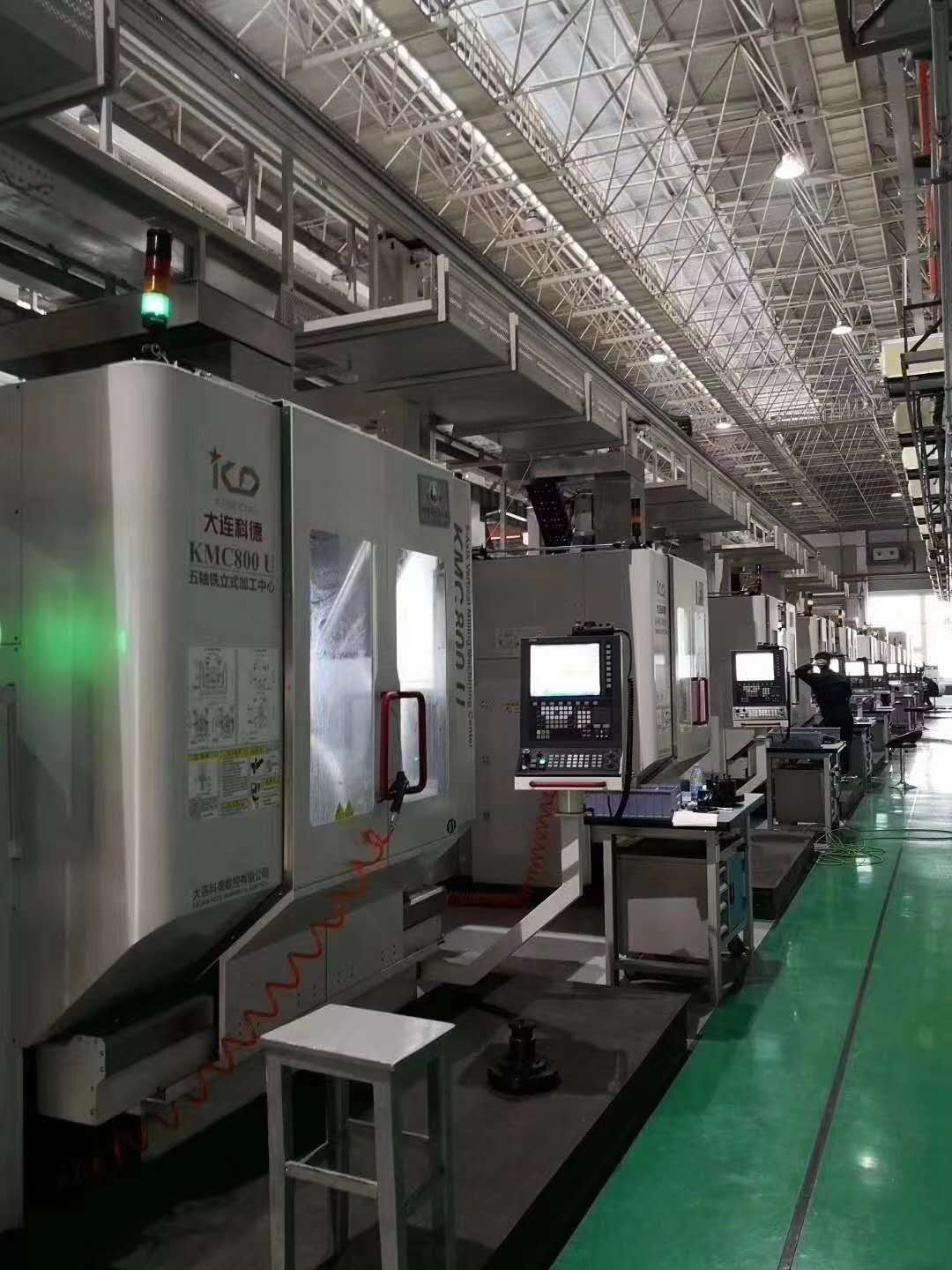

Proudct Deails
FAQ
1. What is you minimum order quantity and warranty?
ANSWER: MOQ is one set, and warranty is one year.
2. Could you please tell me the payment way of your company?
ANSWER: The payment way is general T/T or L/C.
3. Do you have CE or any other certificate?
ANSWER: We have certificates, such as CE, ISO, The Product Patent
Certificate Appearance Design
Patent Certificate etc.
4. What will you do if the machine cannot work during the warranty
period?
ANSWER:
1. During the warranty period, because of product quality problems,
the company is responsible for
free maintenance, if need to change parts, we be responsible for
free replacement.
2. If the machine problem is not belonging to our machine quality
problems, when the buyer needs
us send engineers to give repairing service, we charge the
appropriate cost.
5. Can you send the technical personnel to our company and direct
our workers for free?
ANSWER: When the machine arrive the buyer's installation site, we
timely send mechanical and
electrical engineers to install according to the buyer's schedule,
the buyer undertakes accommodation
of personnel abroad in the process of installation, and the seller
will cooperate with the buyer to deal
with visa and installation preparation before going abroad.
