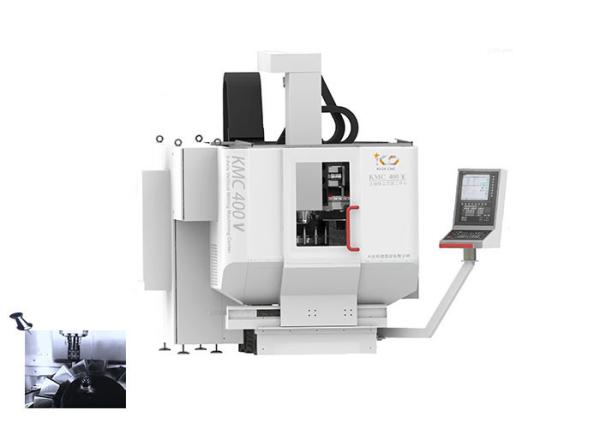

Rotary Table Customization 400 5 Axis Vertical Machining Center
Five axis numerical control system highlights
1. Block spline transfer
2. Synchronous thread cutting
3. Cone interpolation
4. Polar coordinate interpolation
5. Cylindrical surface interpolation ・ Spline interpolation
6. Complete Five-Axis Technology (RTCP TCTP Bevel Processing)
7. System supports wireless probe, tool setting tool access
8. verticality compensation
9. Secondary Development and Offline 3D Simulation System
10. High-speed information interaction
11. High resolution, precise high frequency control scheduling
12. Multi-channel control technology
13. High-speed and high-precision machining
14. Variable pitch thread
15. Polar coordinate interpolation
Product Parameters
| Item | Technical parameter | KMC400 V |
| Working range | Maximum swing diamete mm | — |
| Workbench diameter mm | 690x400 |
| Maximum product weight Kg | 1000 |
| Route | X/Y7Z-axis motion quantity mm | 350/ 350 / 340 |
| A-axis rotation range | — |
| C-axis rotation range | — |
| Tool spindle | Maximum torque S1 / S6 Nm | 42/62 5.6/10 ▲ |
| Maximum Rpm rpm | 15000 20000▲ |
| Rated power kw | 16 7.5 ▲ |
| Clamp | HSK-A63 HSK-A50▲ |
| Spindle central water discharge | Unsupported, supported ▲ |
| Spindle-directing | supported |
| Positioning lock | Unsupported |
| A-axis drive | A-axis drive mode | — |
| A-axis drive torqueS 1 / S6 Nm | — |
| C-axis drive | C-axis drive mode | — |
| C-axis drive torqueS 1 / S6 Nm | — |
| Maximum Feeding speed | X-axis/ Y-axis/ Z-axis m / min | 48,60▲ |
| A-axis rpm | — |
| C-axis rpm | — |
| Control resolution | X/Y/Z-axis mm | 0.001,0.0001 ▲ |
| C-axis | — |
| Full close-loop control | X/Y/Z-axis | Standard |
| A-axis/C-axis | — |
| Positioning accuracy | X/Y/Z-axis mm | 0.008,0.005 ▲ |
| A-axis/C-axis mm | — |
| Repeated positioning accuracy | X/Y/Z-axis mm | 0.005,0.003 ▲ |
| A-axis/C-axis | — |
| Tool Magazine | Capacity | 22 |
| Maximum tool diameter mm | Φ63 |
| Maximum tool length mm | 230 |
| Maximum tool weight kg | 6 |
| Attachment ▲ | Wireless probe mm | repeated accuracy±0.003 |
| Automatic q-setter mm | repeated accuracy±0.003 |
| Machine weight | Net weight | about 5 tons |
| CNC System | Supplier | KEDE Numerical Control Co., LTD |
| Type | GNC62 Bus mode CNC system |
| HMI | 15inches,191inches |
