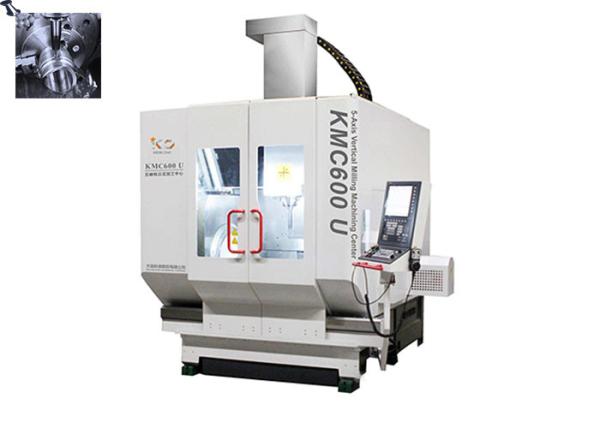

High Precision KMC 600U 800mm 5 Axis Vertical Machining Center
Five axis numerical control system highlights
1. Synchronous thread cutting
2. Cone interpolation
3. Polar coordinate interpolation
4. Cylindrical surface interpolation ・ Spline interpolation
5. Complete Five-Axis Technology (RTCP TCTP Bevel Processing)
6. System supports wireless probe, tool setting tool access
7. Error compensation function - two-way pitch compensation,
straightness compensation (including isotropic deflection
compensation) and verticality compensation
8. Secondary Development and Offline 3D Simulation System
9. High-speed information interaction
10. High resolution, precise high frequency control scheduling
11. Precise position/angle perception
12. Multi-channel control technology
13. High-speed and high-precision machining
14. Variable pitch thread
15. Polar coordinate interpolation
Product Parameters
| Item | Technical parameter | KMC600 U |
| Working range | Maximum swing diamete mm | Φ800 |
| Workbench diameter mm | Φ650x540 |
| Maximum product weight Kg | 1000 |
| Route | X/Y/Z-axis motion quantity mm | 650 / 650 /450 |
| A-axis rotation range | -130°~+130° |
| C-axis rotation range | unlimited |
| Tool spindle | Maximum torque SI / S6 | 125/125▲/120/▲200▲ |
| Maximum Rpm rpm | 14000/18000 ▲/10000 ▲ |
| Rated power kw | 30 |
| Clamp | HSK-A63 |
| Spindle central water discharge | Unsupported, supported ▲ |
| Spindle-directing | supported |
| Positioning lock | Unsupported |
| A-axis drive | A-axis drive mode | Torque motor dual direct drive Nm |
| Rated torque Nm | 3760 |
| C-axis drive | C-axis drive mode | Direct drive torque motor |
| Rated torque Nm | 860 |
| Maximum Feeding speed | X-axis/ Y-axis/ Z-axis m / min | 48 |
| A-axis rpm | 30 |
| C-axis rpm | 80 |
| Control resolution | X/Y/Z-axis mm | 0.001,0.0001▲ |
| C-axis | 0.001°,0.0001°▲ |
| Full close-loop control | X/Y/Z-axis | Standard |
| A-axis/C-axis | Standard |
| Positioning accuracy | X/Y/Z-axis mm | 0.008,0.005 ▲ |
| A-axis/C-axis | 8", 5"▲ |
| Repeated positioning accuracy | X/Y/Z-axis mm | 0.005,0.003 ▲ |
| A-axis/C-axis | 5", 3" ▲ |
| Tool Magazine | Capacity Maximum tool diameter mm | 36 |
| Maximum tool diameter mm | Φ80 |
| Maximum tool length mm | 300 |
| Maximum tool weight kg | 8 |
| Attachment ▲ | Wireless probe mm | repeated accuracy±0.003 |
| Automatic q-sette mm | repeated accuracy±0.003 |
| Machine weight | Net weight | about 13tons |
| CNC System | Supplier | KEDE Numerical Control Co., LTD |
| Type | GNC62 Bus mode CNC system |
| HMI | 15inches,191inches |
Product Characteristics
Mineral casting frame of machine tool
1. Coefficient of thermal expansion is only 1/20 of cast iron 一
smaller thermal deformation error
2. Damping of mineral casting frame is 6 times of cast iron -
better vibration performance
3. One-step molding technology, greatly reduce cost and time of
subsequent processing
4. Room temperature during manufacturing process,preferable bed
material of international precision machine
Center of gravity drive
1. Stronger and more smoothly drive
2. Center of gravity drive with swinging type rotary table
3. Effectively suppress vibration toeliminate reverse break joint
4. Provide users with ideal processing performance
Proudct Deails
FAQ
Q1. How can I get a quotation of the 5 axis vmc?
A. Leave us massage with your purchase requements and we will reply
you ASAP. And you may contact us directly by Trade Manager or
Telephone.
Q2. Can you provide customized machine or SPM (Special purpose
machine)?
A. Yes, we provide smart CNC solutions for our customer, in order to
increase efficiency.
Q3. Can you provide training for operation CNC machines?
A. Yes, free training in our factory is available.
Q4. How about your price?
A. Send me details about what you need, you will get the best price in
China. The price is competitive over the world.
Q5. What's your warranty terms?
A. We will supply a replacement for parts that prove to be defective
for a period of 18 months, starting on the machine’s bill of lading
date. Extended warranty is available at the time of purchase.
Please contact your Z-MaT sales representative for details.
Q6. What’s the delivery time, and what’s the package?
A. Normally the delivery time is about 30-45 days. All our CNC machines are packed with sea worthy package.
