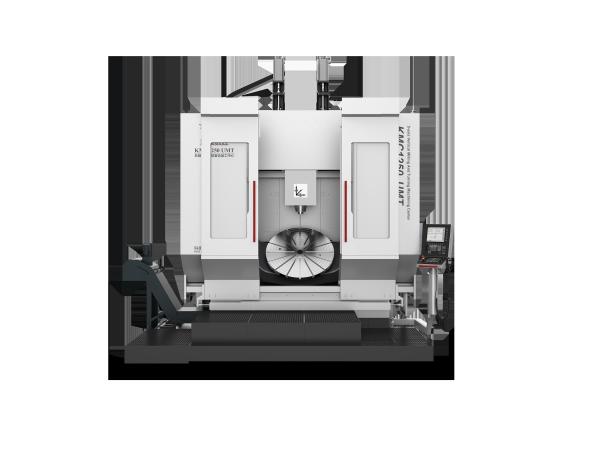

Big travel Mould making 5 Axis Vertical Machining Center High
Rigidity
Product Characteristics
Mineral casting frame of machine tool
・ Coefficient of thermal expansion is only 1/20 of cast iron 一 smaller thermal deformation error
・ Damping of mineral casting frame is 6 times of cast iron - better vibration performance
・ One-step molding technology, greatly reduce cost and time of
subsequent processing
・ Room temperature during manufacturing process,preferable bed
material of international precision machine
Center of gravity drive
・ Stronger and more smoothly drive
・ Center of gravity drive with swinging type rotary table
・ Effectively suppress vibration toeliminate reverse break joint
・ Provide users with ideal processing performance
Product Parameters
| Item | Technical parameter | KMC1250U |
| Working range | Maximum swing diamete mm | Φ1480 |
| Workbench diameter mm | Φ1350x1100/900 |
| Maximum product weight Kg | 3000 |
| Route | X/Y/Z-axis motion quantity mm | 1200 / 1425 /1000 |
| A-axis rotation range | -130°~+130° |
| C-axis rotation range | unlimited |
| Tool spindle | Maximum torque S1 / S6 Nm | 200 / 300 |
| Maximum Rpm rpm | 12000 |
| Rated power kw | 62 |
| Clamp | HSK-A100 |
| Spindle central water discharge | Unsupported, supported▲ |
| Spindle-directing | supported |
| Positioning lock | Unsupported |
| A-axis drive | A-axis drive mode | Torque motor dual direct drive |
| Rated torque Nm | 4090*2 |
| C-axis drive | C-axis drive mode | Direct drive torque motor |
| Rated torque Nm | 4458 |
| Maximum Feeding speed | X/Y/Z m/min | 50 |
| A-axis rpm | 30 |
| C-axis rpm | 40 |
| Control resolution | X/Y/Z-axis mm | 0.001,0.0001 ▲ |
| C-axis | 0.001°,0.0001°▲ |
| Full close-loop control | X/Y/Z-axis | Standard |
| A-axis/C-axis | Standard |
| Positioning accuracy | X/Y/Z-axis mm | 0.008,0.005 ▲ |
| A-axis/C-axis | 16”, 10”▲ |
| Repeated positioning accuracy | X/Y/Z-axis mm | 0.005,0.003 ▲ |
| A-axis/C-axis | 8", 5"▲ |
| Tool Magazine | Capacity | 50 |
| Maximum tool diamet mm | Φ125 |
| Maximum tool length mm | 500 |
| Maximum tool weight kg | 30 |
| Attachment ▲ | Wireless probe mm | repeated accuracy±0.003 |
| Automatic q-setter mm | repeated accuracy±0.003 |
| Machine weight | Net weight | about 40 tons |
| CNC System | Supplier | KEDE Numerical Control Co., LTD |
| Type | GNC62 Bus mode CNC system |
| HMI | 15inches,191inches |
Introduction
The vertical machining center can be applied to many fields such as
mechanical processing and mould manufacturing, canadapt from
roughing to finishing processing requirements, has the
characteristics of high precision, high efficiency, is widelyused
in aerospace, military industry, mould, automobile, internal
combustion engines, textile machinery, chemical machinery
processing, oil, electronics and other industries.
Proudct application
