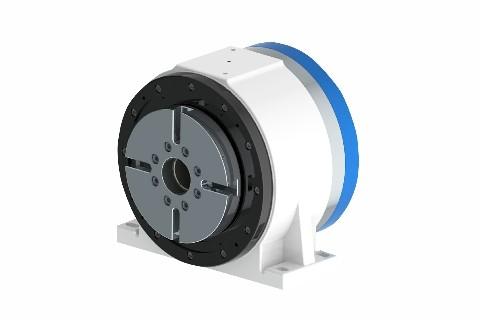

    Pneumatic Brake 160mm Direct Drive Fourth Axis Rotary Table

    Direct Drive High Speed 4th Rotary Table Pneumatic Brake 160

    Product description

    direct Drive includes a torque motor and a linear motor, followed by a motor. Different from the traditional motor, the product's high torque enables it to be directly connected to the moving device, thus eliminating the connection mechanism such as reducer, gearbox, belt wheel, etc., so it is called the direct drive motor.Because the general motors are equipped with high resolution encoder, so that the product can achieve a higher level of precision than the ordinary servo.Because of the direct connection, the positioning error caused by the mechanical structure is reduced and the process accuracy is guaranteed.For part of the camshaft control mode, on the one hand to reduce the friction due to the mechanical structure of the size of the error, and for installation, the noise reduced a lot.

    Main Features

    1. Driven by torque motoe,working in high speed and rapidresponse cases,can save a lot of time.
    2. Assembling with the world famous brands' bearings, it is of good rigidity, large load capacity and small runout. Working with standard encoder(26 bit) which can locate quickly.
    3. With our own patented brake system, we can ensure the good quality of products.
    4. Adopting with the IP65 protection, it can prevent water from the rotary.
    5. The special rotary can be made according to clients' requirements for different working environment and precision.

    Product application
    1, CNC Rotary Transfer Machines
    2, Milling Machines
    3, Machine Centers
    4, Assembly Machines
    5, Casting/ Foundry Machines
    6, Rotating Satellites

    Main technical parameter

    Rotary Table ModelDZDH-255
    Disk surface diameter(mm)Φ255
    Center for high(mm)160
    Center through hole diameter(mm)Φ46H7
    Clamping WayAir
    Clamping Torque400
    Disk Surface/ Radial Runou0.01/0.005
    Driving TypeTorque motor direct drive
    Voltage for Driver220
    Rated /Maximum Speed200/200
    Rated /MaximumTorque200/300
    Rated/Maximum Current14.5/24
    Positioning Precision±10
    Repeated Positioning Precision±2
    Minimum unit0.001
    Load Capacity120
    Weight150
    Level of ProtectionIP66


    Product dimession

    Customized service

    Products can be customized according to customer requirements, you can change the shape and color of the sheet metal motor cover, you can change the LOGO.
