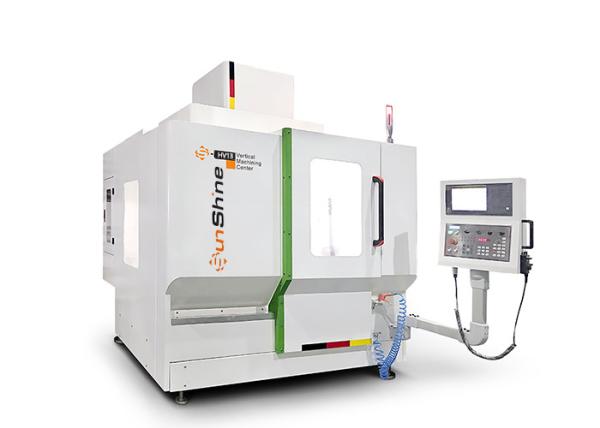

Industrial Vertical Milling Center Machine 8000rpm Roller Linear
Way S-HV13
Product Characteristics
1. Machine frame with linear guides in an extra-wide configuration,
Robust construction for efficient machining.
2. Integrated castingstructure base, super big type
column,structure is more stable.
3. 3 axis adopt precision linear way, rapid move speed is fast,
precision is high.
4. Spindle adopt high speed ceramic balls bearing, precision is
good, the life is long.

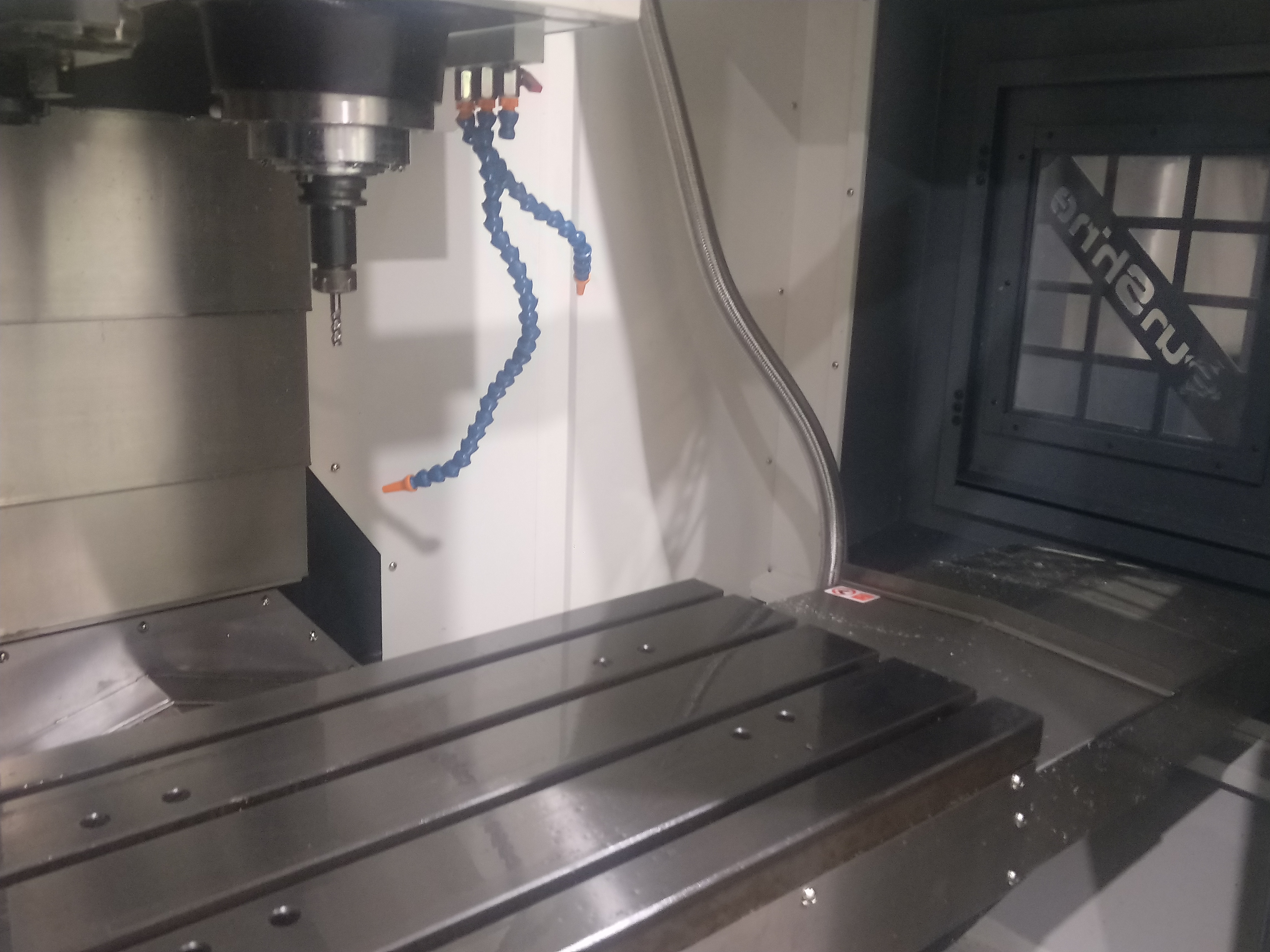

5. Machine tool chip discharge standard on both sides of the slope
after flushing chip, water tank rear design, automation,
humanization, high efficiency. Double layer water tank filter
system structure to provide good cutting fluid for workpiece
processing.
Introduce
1. Vertical machining center HV13 is with Taiwan high speed spindle
8000rpm.
2. HV13 is with roller linear ways on X,Y,Z axes with high
stability, rapid speed is 24/24/16m/min.

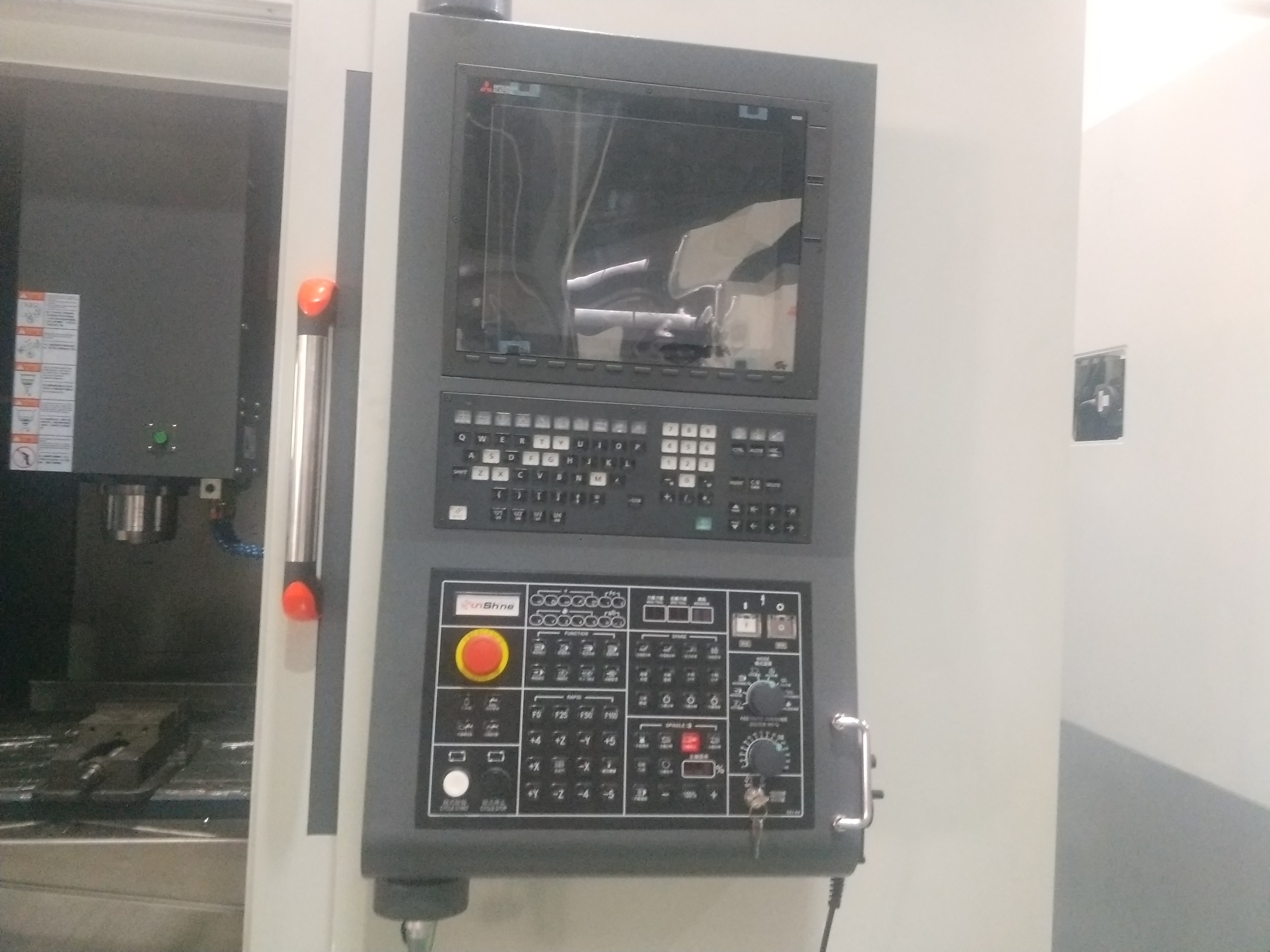

3. The whole machine is with closed protection and electric
cabinet, which assures the safety of worker and lustration of
environment.
4. The machine is with taiwan Hiwin/PMI ballscrew, FAG/NSK bearing.
Application Area
Suitable for all types IT parts high belt processing, hardware
parts processing, auto parts processing ,3 C industrial parts
processing, aerospace field parts processing, other precision parts
processing.
Parameters
| Item | Unit | S-HV13 |
| X/Y/Z axis Travel | mm | 1300/700/700 |
| Spindle Nose to Work Table | mm | 120-820 |
| Spindle Center to Column Distance | mm | 700 |
| 3AxisGuideway | / | Roller Linear Way |
| Work Table Size | mm | 1400X710 |
| Max Loading | kg | 1100 |
| T-slot(n um ber-size*d istance) | mm | 5-18X100 |
| 3 axis Rapid Move Speed | M/min | 36/36/36 |
| Cutting Feed Speed | mm/min | 0-10000 |
| Spindle Rotation Speed | rpm | 10000/12000/15000rpm |
| Spindle Spec | / | BBT40/HSK-A63 |
| Spindle Motor | kw | 11/15 |
| 3 axis Motor | kw | 3/3/3 |
| Position Precision | mm | ±0.005/300 |
| Repeat Position Precision | mm | ±0.003 |
| Machine Weight | kg | 9000 |
| Machine Size | mm | 3500X3100X3200 |
