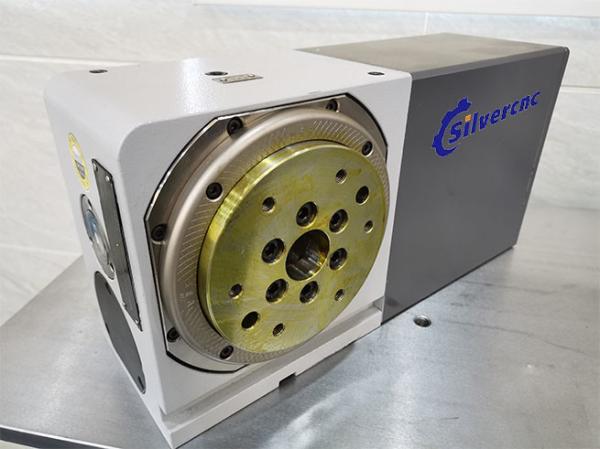

Small Size 4 Axis Rotary Table For CNC Engraving Machine C110
Product description
The Roller Driver uses the roller gear mechanism, one of the finest
motion control mechanisms available. The unit is constructed from
an input shaft(the roller gearcam) and a turret(output shaft)
fitted with roller followers.The roller followers are preloaded
against a screw-like input shaft to completely eliminate backlash.
Our proprietary adjustment mechanism provides optimum preload. The
roller followers planted in the turret use internal roller bearings
to transfer torque while rotating. This ensures zero backlash,
outstanding precision,and excellent efficiency without causing
wear, while providing long-term consistent accuracy.
No backlash(play) during the clockwise/anti-clockwise rotation
No wear because power transfers through rolling contact
High accuracy and good efficiency
Preload and high rigidity
Product parameters:
| Description | unit | SILVER-C110 |
| Table Diameter | mm | Ø120 |
| Diameter of Table Central Hole | mm | Ø30H7 |
| Center Height (Vertical) | mm | 110 |
| Speed Reduction Ratio | / | 32 |
| Max. Rotation Rate of Table (Calculate with Fanuc α Motor) | rpm | 90 |
| Indexing Precision | sec. | ±40 |
| Repeatability | sec. | ±4 |
| Net Weight (servo motor excluded) | kg | 30 |
| Allowable Workpiece Load | Vertical | kg | 25 |
Horizontal | kg | / |
| Allowable Load | F | N | 7149 |
| Strength of Roller Gear Cam |  | N.m | 109 |
| Max strength of Roller Gear Cam | N.m | 150 |
| Allowable bending torque | N.m | 201 |
| Allowable Inertia Load Capacity | kg.m2 | 0.38 |
| Clamping Torque | N.m | 100 |
Clamping System
(Pneumatic / Hydraulic) | Mpa | 1 (Pneumatic) |
Product features
This four-axis small volume, the center height is only 110mm,
widely used in small machine tools, such as carving machines,
double-head machine tools, etc.
Because of its small volume, it solves the limitation of engraving
machine space and can process all kinds of complex small products.
Applicable industries and materials include:
1. Woodworking industry: rosewood and other hardwood antique
furniture embossing, carving and other carving techniques.
2. Furniture industry: wooden doors, cabinets, boards, offices,
solid wood furniture, desks, chairs, doors and Windows,
3. Advertising industry: advertising signage, logo production,
acrylic cutting, blister molding, production of various materials
advertising decorative products.
4. Wood products: audio equipment, game cabinet, computer table,
sewing machine table, Musical Instruments.
5. Plate processing: insulation parts, plastic chemical parts, PCB,
bowling track, stairs, anti-double board, epoxy resin, ABS, PP, PE
and other carbon mixture.

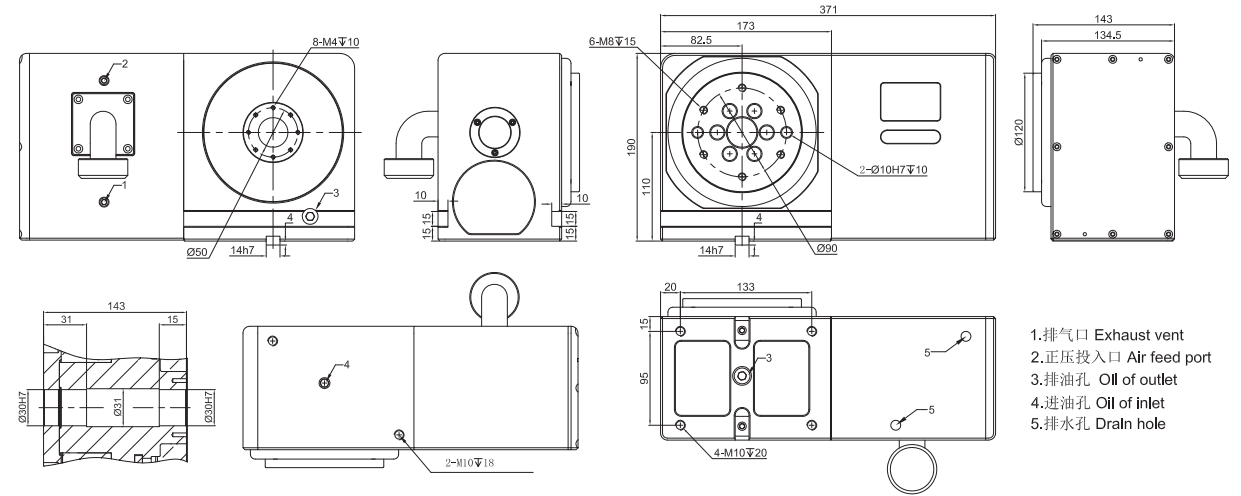

Product dimession
FAQ
Q1: Are you a factory?
A1: Yes,we are a professional factory that was founded in 2013
Q2: Payment term
A2: After the contract is signed, you shall pay 40% deposit, then
the contract comes into effect.
Q3:Production time
A3: 20 days upon order confirmation
Q4:Check the acceptance
A4: When receiving the goods, please check product carefully:
Whether there is packing damage, leakage and whether the goods are
damaged; Whether product quantity and accessories are same as
required; Whether all machine details are fine. If there is any
problem about machine, please take pictures and contact us
immediately.
Q5:Warranty time
A5: 1) One year warranty. During the first year, if some parts need
replacing, we will free provide. And we offer life-long
maintenance. After warranty time, customers shall pay money for
component and express fee.We can provide debugging on site and
training for customers, but customers need to pay expense. In this
case, the customer will pay for air tickets between China and
buyer's destination and free provide accommodation and meals.
2)12 months warranty begins from the day when the machine arrives.
If it can’t work normally, my company will send engineers to your
factory within 24 hours after receiving your notice. We still
support maintenance for machine even warranty expires. Each machine
leaving the factory will be along with related English instructions
including maintenance manual and operation manual.
Q6:OEM Service
A6: We accept purchase orders with customers' brand or trade mark
