3 Axis VMC Machine High Speed Vertical Machining Center Ball Linear
Way S-HV6
Introduce
This VMC is suitable for mechanical processing and mold making .And
it can asapt to the processing requirement from rough machining to
finish machining .It can also finish many working procedures like
milling ,drilling ,tapping ,boring ,etc.
Product Characteristics
1. All castings adopting Meehanite casting iron, deformation is
small, the ability is better to resist vibration.
2. integrated castingstructure base, super big type
column,structure is more stable.
3. 3 axis adopt precision linear way, rapid move speed is fast,
precision is high.
4. Spindle adopt high speed ceramic balls bearing, precision is
good, the life is long.
5. High-precision preloaded ball screws on all 3 axes.The 4th axis
is optional.
6. The high speed, high precision, high rigidity spindle unit
Application Area
The vertical machining center can be applied to many fields such as
mechanical processing and mould manufacturing, can adapt from
roughing to finishing processing requirements, has the
characteristics of high precision, high efficiency, is widelyused
in aerospace, military industry, mould, automobile, internal
combustion engines, textile machinery, chemical machinery
processing, oil, electronics and other industries.
Product Parameters
| Item | Unit | S-HV6 |
| X/Y/Z axis Travel | mm | 600/450/500 |
| Spindle Nose to Work Table | mm | 150-650 |
| Spindle Center to Column Distance | mm | 500 |
| 3AxisGuideway | / | Ball Linear Way |
| Work Table Size | mm | 700X460 |
| Max Loading | kg | 400 |
| T-slot(n um ber-size*d istance) | mm | 3-18X125 |
| 3 axis Rapid Move Speed | M/min | 36/36/36 |
| Cutting Feed Speed | mm/min | 0-10000 |
| Spindle Rotation Speed | rpm | 12000/15000/20000rpm |
| Spindle Spec | / | BBT40/HSK-A63 |
| Spindle Motor | kw | 7.5 |
| 3 axis Motor | kw | 1.5/1.5/3 |
| Position Precision | mm | ±0.005/300 |
| Repeat Position Precision | mm | ±0.003 |
| Machine Weight | kg | 4800 |
| Machine Size | mm | 2700X2100X2800 |
FAQ
Q1: Can I have your quotation?
A: First, please offer us the information of your material size,
without these parameter, we are not able to recommend you the
suitable machine.
Q 2: How to operate and maintain the machine?
A : First, we will provide a professional and detailed USER GUIDE
to you with the machine; Second, we will debug the machine in the
best status for you; At last, we also provide abroad technical
training service.
Q 3: Where is your factory located ? How can I visit it ?
A : Our factory is located in Shenzhen city,Guangdong
province,China. You can fly to shenzhen air port, we will pick you
up.
Q 4 :How can I choose the most suitable machines ?
A : Please tell me your specifications ,we can choose the best
model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most
suitable machines for you .
Q 5: Can you guarantee you quality?
A : Of course. We are the ferrous metal and non-ferrous metal
foundry production series sand core machine manufacture factory
,more important, we put a high value on our reputation. Best
quality is our principle all the time. You can be assured on our
production completely.

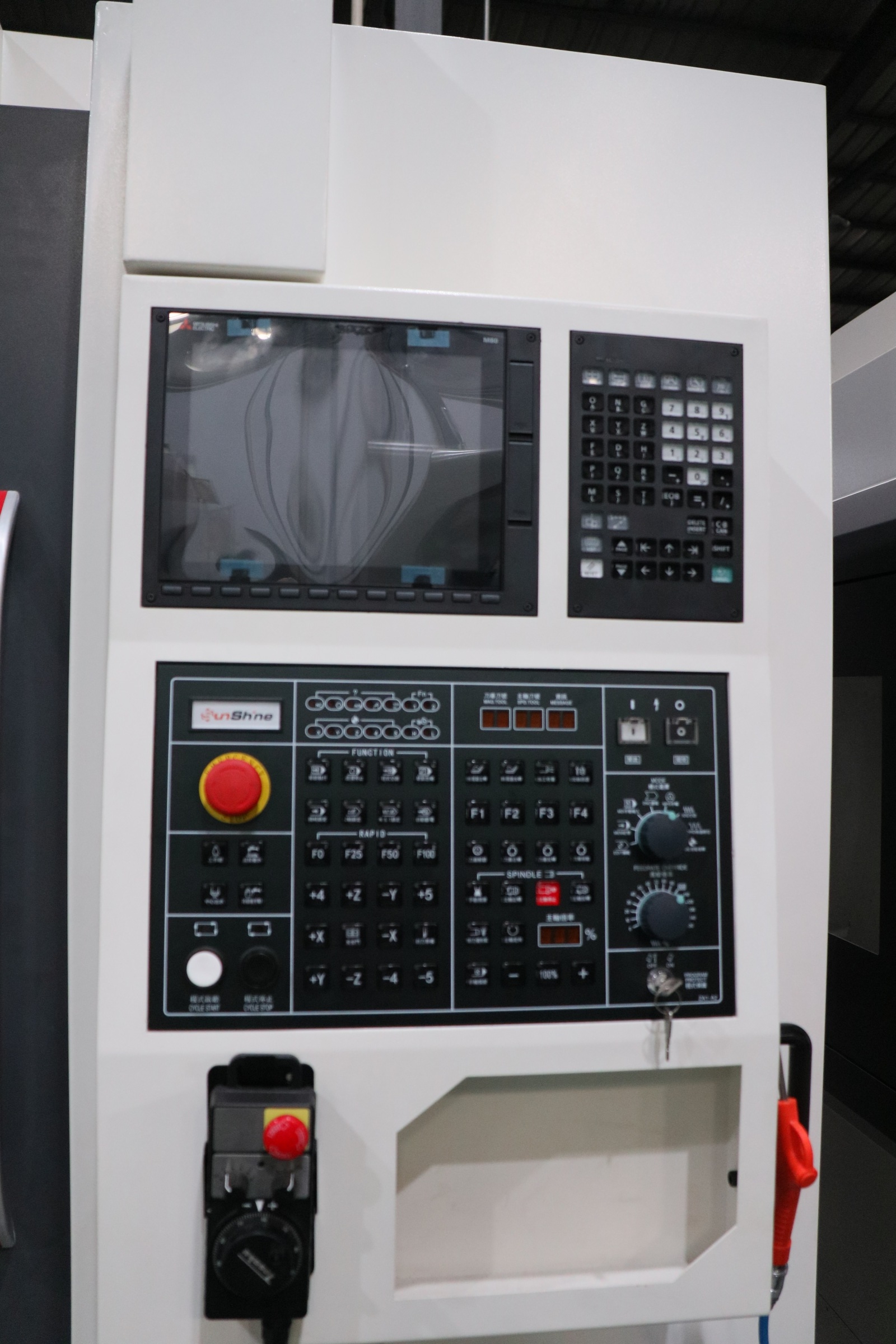

Product deails
