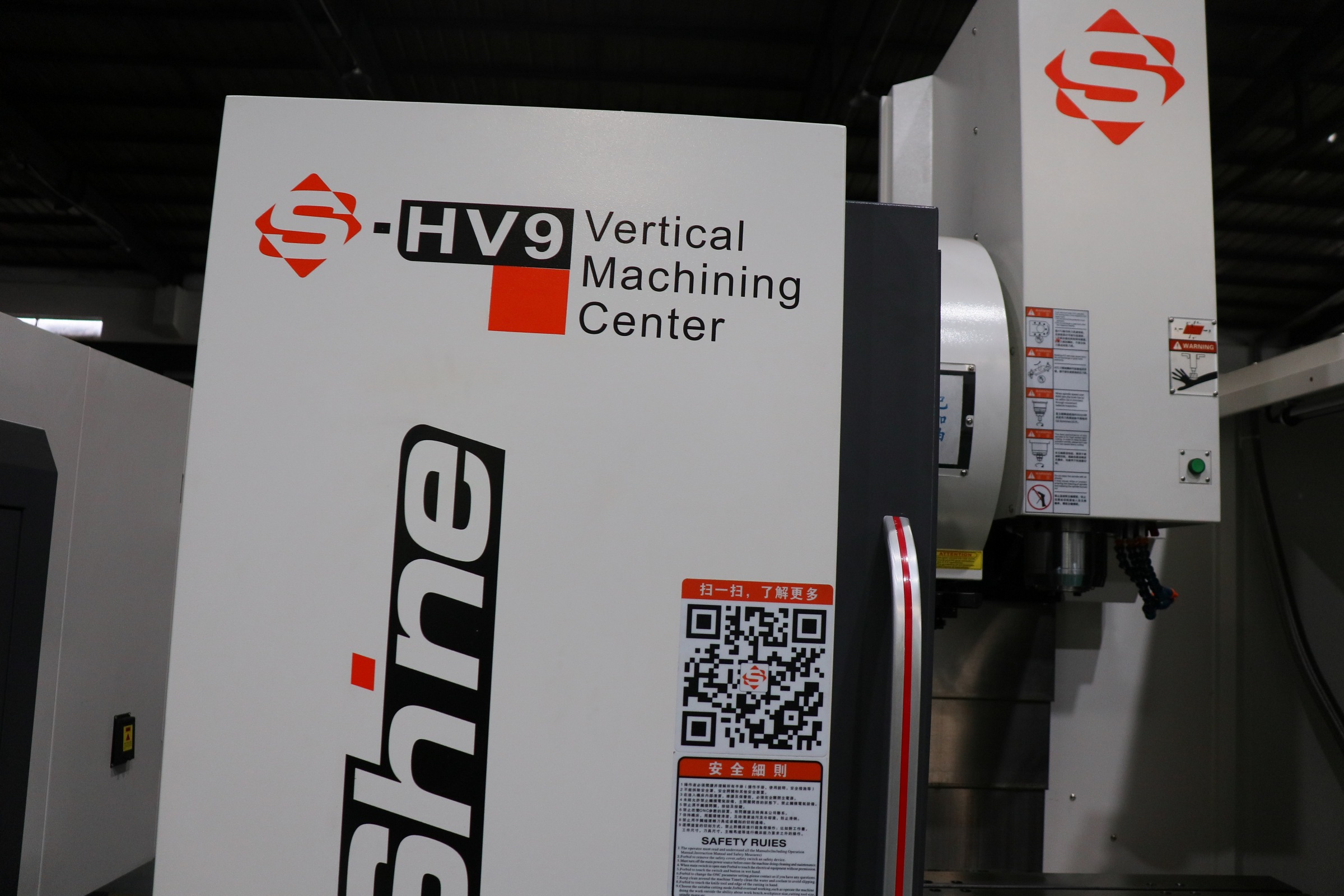

BBT40 High Precision Industrial CNC Milling Machine For Metal
Making S-HV9
Product Characteristics
1. All castings adopting Meehanite casting iron, deformation is
small, the ability is better to resist vibration.
2.The base is wide, the column is box-shaped structure, the saddle
is widened and lengthened, the heavy-duty full-support design, and
the structure is solid, which can ensure the heavy load capacity
during processing.
3. 3 axis adopt precision linear way, rapid move speed is fast,
precision is high.

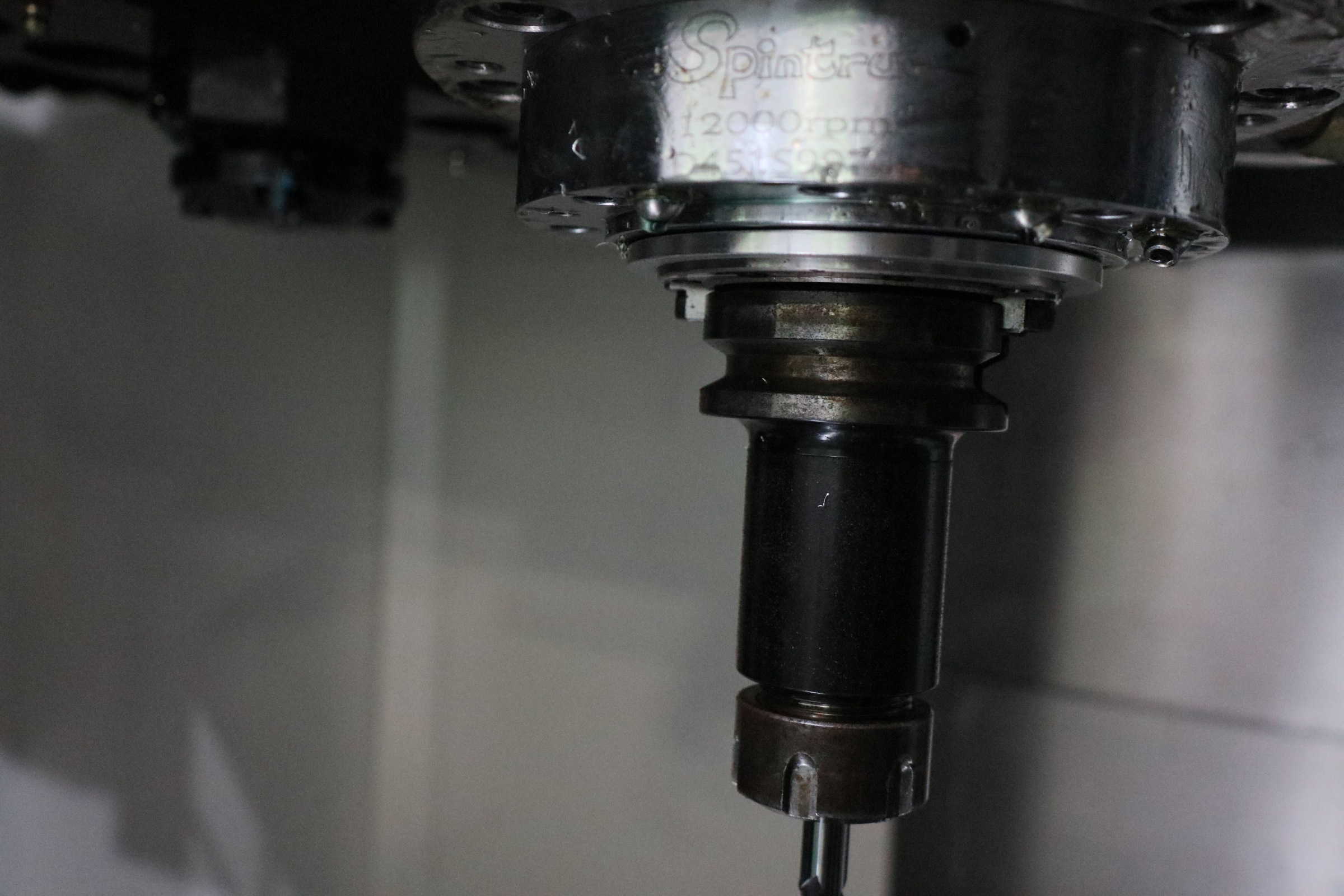

4. Spindle adopt high speed ceramic balls bearing, precision is
good, the life is long.
5. The electrical box adopts the rear hanging design, which saves
space and makes limited space for maximum use.
Introduce
High speed cutting, low speed without crawling: the use of
high-precision rail and lead screw, so the machine has a better
dynamic atopic, can achieve off-speed cutting, low diagnosis
without crawling.
APPLICATION AREA
It's mainly applicable to the aviation, aerospace, automotive,
military, energy, information, mold and other industries parts
processing. It is characterized by high speed, high precision, high
flexibility and environmental protection. Its performance index and
precision index completely accord with the national standard.
Through modular design, the products can be serialized and
customized according to the market demand, and its good performance
and price ratio is the best choice for customers at home and
abroad.
Product Parameters
| Item | Unit | S-HV9 |
| X/Y/Z axis Travel | mm | 860/600/500 |
| Spindle Nose to Work Table | mm | 120-620 |
| Spindle Center to Column Distance | mm | 650 |
| 3AxisGuideway | / | Roller Linear Way |
| Work Table Size | mm | 1000X520 |
| Max Loading | kg | 800 |
| T-slot(n um ber-size*d istance) | mm | 4-18X95 |
| 3 axis Rapid Move Speed | M/min | 36/36/36 |
| Cutting Feed Speed | mm/min | 0-10000 |
| Spindle Rotation Speed | rpm | 12000/15000/20000rpm |
| Spindle Spec | / | BBT40/HSK-A63 |
| Spindle Motor | kw | 11 |
| 3 axis Motor | kw | 3/3/3 |
| Position Precision | mm | ±0.005/300 |
| Repeat Position Precision | mm | ±0.003 |
| Machine Weight | kg | 6700 |
| Machine Size | mm | 2900X2700X2700 |
FAQ
Q1: How can I get a quotation of the cnc vertical machining center?
A: Leave us messages with your requements, we will reply to you
within 12 hours. And you may contact us directly by Trade Manager
or mobile.
Q 2: How to operate and maintain the machine?
A : First, we will provide a professional and detailed USER GUIDE
to you with the machine; Second, we will debug the machine in the
best status for you; At last, we also provide abroad technical
training service.
Q 3: Where is your factory located ? How can I visit it ?
A : Our factory is located in shenzhen city,guangdong
province,China. You can fly to shenzhen air port, we will pick you
up.
Q 4 :What’s the delivery time, and what’s the package?
A : Normally the delivery time is about 30-45 days. All our CNC
machines are packed with seaworthy package.
Q 5: Can you guarantee you quality?
A : Of course. We are the ferrous metal and non-ferrous metal
foundry production series sand core machine manufacture factory
,more important, we put a high value on our reputation. Best
quality is our principle all the time. You can be assured on our
production completely.

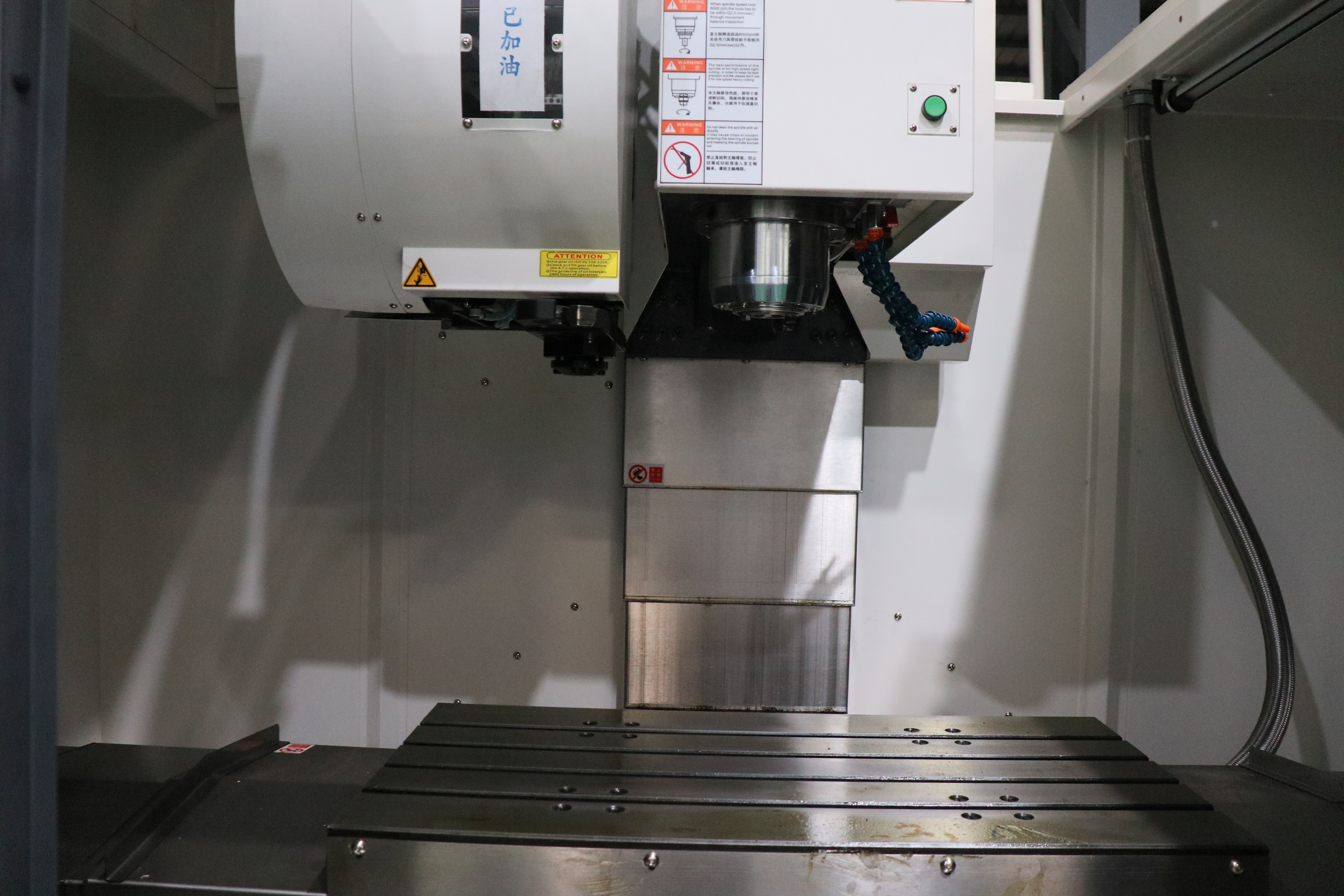

Product deails
