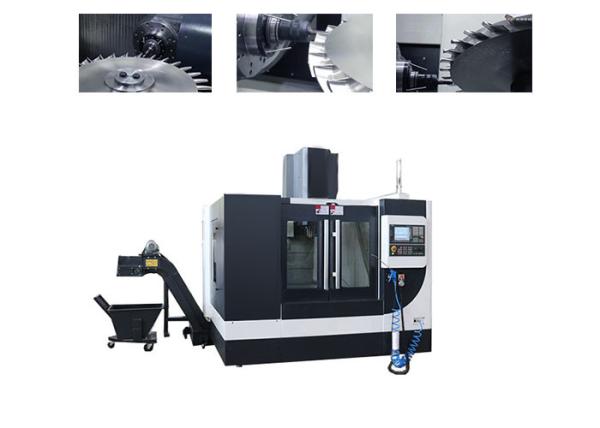

High Precisions 3-Axis Vertical machining center machine High
Rigidity S-1060
Product features:
1. The guide rail of X, Z, Y axis are use HIWIN/PMI's heavy load
linear ball guide, has the advantages of fast speed, Eliminate
intermittent creep, high rigidity, low friction, low noise , low
temperature rise and so on.
2. The spindle unit of the machine tool is high speed, high
accuracy, high rigidity, with large load carrying capacity of axial
and radial, and the maximum speed of up to 8000rpm.
3. Guide rail and ball screw of X, Y, Z direction are all use
protection device to ensure that the screw and the guide is clean
and the accuracy and life of machine tool's transmission and
movement.
4. The machine tool external protection of machine tool uses the
full protection structure. It is convenient operation, safe and
reliable, and nice shape.
5. The machine matched with 12 hats (standard) or 16 disc knife
library (optional) supplied by Taiwan professional manufacturers.
6.The principle of human body engineering is used in machine tool
operation system . The operating box is independent. It can be
self-rotation and easy to operate.
APPLICATION AREA
IT is widely used in machinery manufacturing, mold manufacturing
and other industries to process complex parts such as plate, plate,
shell and mold, especially for auto parts and IT parts
processing.After the workpiece is clamped once, milling, drilling,
boring, reaming and other processes can be completed
continuously.Can be used in a single set, but also can be composed
of several production line processing parts.
PRODUCT PARAMETERS
| Item | Unit | S-1060 |
| X/Y/Z axis Travel | mm | 1000/600/600 |
| Spindle Nose to Work table | mm | 180-780 |
| Spindle Center to Column Distance | mm | 600 |
| 3 Axis Guideway | / | 3 axis box guideway |
| Work table Size | mm | 1300X600 |
| Max Loading | kg | 800 |
| T-slot (n um be r-size*dista nce) | mm | 5-18X120 |
| 3 Axis Rapid Move Speed | M/min | 16/16/14 |
| Cutting Feed Speed | mm/min | 0-10000 |
| Spindle Rotation Speed | rpm | 8000/10000/12000 |
| Spindle Spec | / | BT40 |
| Spindle Motor | kw | 11/15 |
| 3 Axis Motor | kw | 3/3/3 |
| Position Precision | mm | ±0.005/300 |
| Repeat Position Precision | mm | ±0.003 |
| Machine Weight | kg | 8000 |
| Machine Size | mm | 3350 X 2500 X2800 |
FAQ
Q1: Can I have your quotation?
A: First, please offer us the information of your material size,
without these parameter, we are not able to recommend you the
suitable machine.
Q 2: How to operate and maintain the machine?
A : First, we will provide a professional and detailed USER GUIDE
to you with the machine; Second, we will debug the machine in the
best status for you; At last, we also provide abroad technical
training service.
Q 3: Where is your factory located ? How can I visit it ?
A : Our factory is located in Shenzhen city,Guangdong
province,China. You can fly to Shenzhen air port, we will pick you
up.
Q 4 :What’s dimension of your workpiece ?
A : In order to configure suitable size machine for you. we should
get your info. We can professional design as your requirement.
Q 5: Can you guarantee you quality?
A : Of course. We are the ferrous metal and non-ferrous metal
foundry production series sand core machine manufacture factory
,more important, we put a high value on our reputation. Best
quality is our principle all the time. You can be assured on our
production completely.
Q 6:Check the acceptance
A : When receiving the goods, please check product carefully:
Whether there is packing damage, leakage and whether the goods are
damaged; Whether product quantity and accessories are same as
required; Whether all machine details are fine. If there is any
problem about machine, please take pictures and contact us
immediately.
