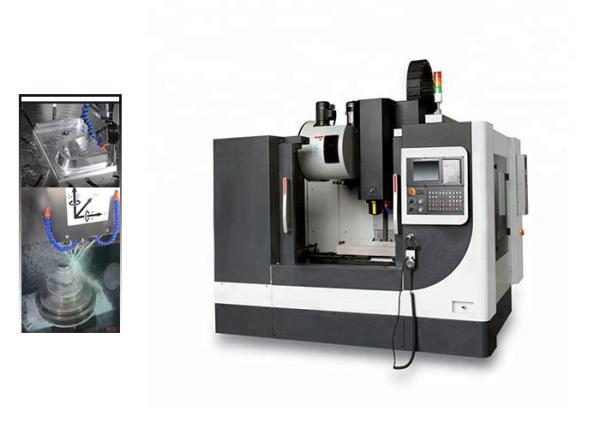

BT50 Large Load Moulding Vertical Machine For Metal Making S-L1370
Introduce
Hard rail series, three-axes vertical machining center. Mainly used
in medium-sized parts and molds, the workpiece in a fixture may be
for the completion of milling, drilling boring, it can be single
used and can also be used for multiple operations on parts in a
production line. Cutting with powerful, high-speed positioning,
mechanical and electrical integration, automatic Chip control and
security protection features.
Product Characteristics
1.After natural and artificial aging, is stable and won't easy to
become deformed.
2.With big power motor, capacity of heavy cutting is strong.
3.Integrated casting structure base, non chassis frame, won't leak
oil.
4.Super big "人” type column, extra-wide square guideway, loading
capacity is strong.
5.All slides are lubricated by the automatic lubrication system.
APPLICATION AREA
IT is widely used in machinery manufacturing, mold manufacturing
and other industries to process complex parts such as plate, shell
and mold, especially for auto parts and IT parts processing.After
the workpiece is clamped once, milling, drilling, boring, reaming
and other processes can be completed continuously.Can be used in a
single set, but also can be composed of several production line
processing parts.
PRODUCT PARAMETERS
| Item | Unit | S-L1370 |
| X/Y/Z axis Travel | mm | 1300/700/700 |
| Spindle Nose to Work table | mm | 190-890 |
| Spindle Center to Column Distance | mm | 757 |
| 3 Axis Guideway | / | X/Y axis rail, Z axis hard rail |
| Work table Size | mm | 1500X700 |
| Max Loading | kg | 1400 |
| T-slot (n um be r-size*dista nce) | mm | 5-18X135 |
| 3 Axis Rapid Move Speed | M/min | 24/24/14 |
| Cutting Feed Speed | mrri/min | 0-10000 |
| Spindle Rotation Speed | rpm | 8000 |
| Spindle Spec | / | BT50 |
| Spindle Motor | kw | 15 |
| 3 Axis Motor | kw | 4.5/4.5/4.5 |
| Position Precision | mm | ±0.005/300 |
| Repeat Position Precision | mm | ±0.003 |
| Machine Weight | kg | 11500 |
| Machine Size | mm | 4000 X 3000 X 3400 |
Standard Accessories:
Fanuc/Mitsubishi Controller system
Full enclosed cover
Spindle encoder position system
Auto lubrication system
Umbrella type tool magazine
Pneumatic system
RS 232 Interface
Operation unit
Working light
Tool and tool box
Optional accessories:
Siemens controller or other controller system
Spindle oil coolant
Arm type tool magazine
Chain type tool magazine
4 Axis rotary table
optical probe
tool setter
FAQ
Q1: How can I get a quotation?
A : Please Leave us messages with your purchase requirements and we
will reply to you ASAP. contact us directly by Trade Manager
orTelephone.
Q 2: How to operate and maintain the machine?
A : First, we will provide a professional and detailed USER GUIDE
to you with the machine; Second, we will debug the machine in the
best status for you; At last, we also provide abroad technical
training service.
Q 3: Where is your factory located ? How can I visit it ?
A : Our factory is located in shenzhen city,guangdong
province,China. You can fly to shenzhen air port, we will pick you
up.
Q 4 :What’s dimension of your workpiece ?
A : In order to configure suitable size machine for you. we should
get your info. We can professional design as your requirement.
Q 5: Can you guarantee you quality?
A : Of course. We are the ferrous metal and non-ferrous metal
foundry production series sand core machine manufacture factory
,more important, we put a high value on our reputation. Best
quality is our principle all the time. You can be assured on our
production completely.
